Bandwidth: 400 MHz
Rise time: ≤1 ns
DC accuracy: ±2%
Attenuation rate: 100X / 1000X
Differential test voltage (Max.):
100X: ±150 V
1000X: ±1500 V
Input voltage to earth (Max.): 1000 V CAT III, 600 V CAT IV
CMRR:
DC: >80 dB
100 kHz: >60 dB
1 MHz: >50 dB
Interface: BNC
Product Overview

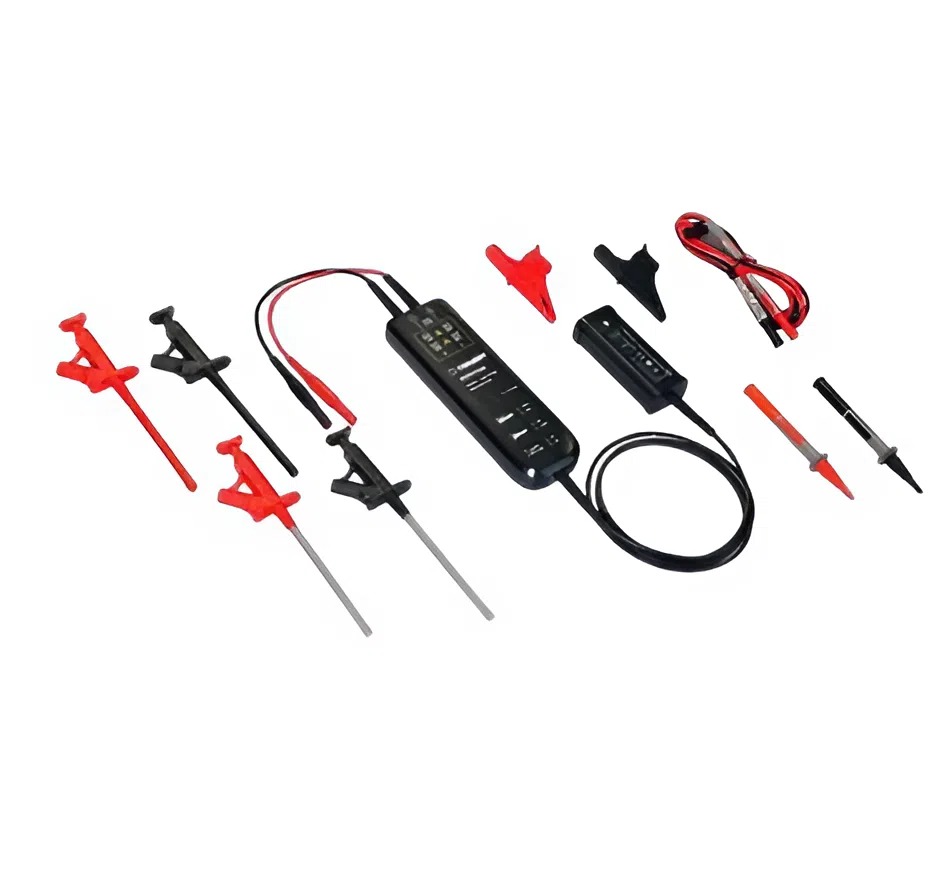

The DPB6150 and SDP6150 Series high voltage differential probes feature a maximum bandwidth of 400 MHz and can measure voltages up to 1500 Vpk. With excellent common-mode noise rejection, high input impedance, and low input capacitance, they enable precise measurement of differential voltage signals and floating signals. Equipped with one-touch zero calibration and audible-visual overload alarms, these probes ensure operational safety and convenience, making them widely applicable to R&D and maintenance of switching power supplies, electronic ballasts, variable-frequency appliances, and other electrical power devices.
