Model |

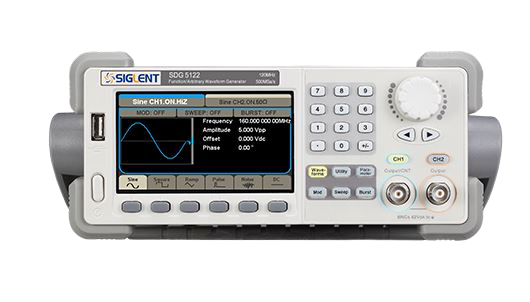

SDG5122 |
||
|
Maximum output frequency |
120MHz |
||
|
Output channels |
2 |
||
|
Sampling rate |
500MSa/s |
||
|
Wave length |
CH1:16Kpts,CH2:512Kpts |
||
|
Frequency resolution |
1μHz |
||
|
Vertical resolution |
14bit |
||
|
Waveform |
Sine, Square, Ramp, Pulse, Gaussian white noise, Arb |
||
|
Modulation function |
AM,DSB-AM, FM, PM, FSK, ASK,PWM, Sweep, Burst |
||
|
Amplitude |
CH1/CH2≤40MHz: 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(high impedance) 40MHz~100MHz: 1mVpp~5Vpp(50Ω), 2mVpp~10Vpp(high impedance) 100MHz~130MHz: 1mVpp~2.5Vpp(50Ω),2mVpp~5Vpp(high impedance) 130MHz~160MHz: 1mVpp~1.5Vpp(50Ω),2mVpp~3Vpp(high impedance)
|
||
|
Frequency counter |
Frequency range: 100 mHz ~ 200 MHz |
||
|
Interface |
USB Host, USB Device |
||
|
Optional interface |
LAN,GPIB(IEEE-488) |
||
|
Dimension |
261mm*104.85mm*343.8mm |
||
|
Detailed performance parameters and technical indicators please refer to 《SDG5000 serial Datasheet》 |
|||
Standard Accessories:
1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start
Optional Accessories:
1. BNC Cable
2. GPIB (IEEE 488.2)
|
