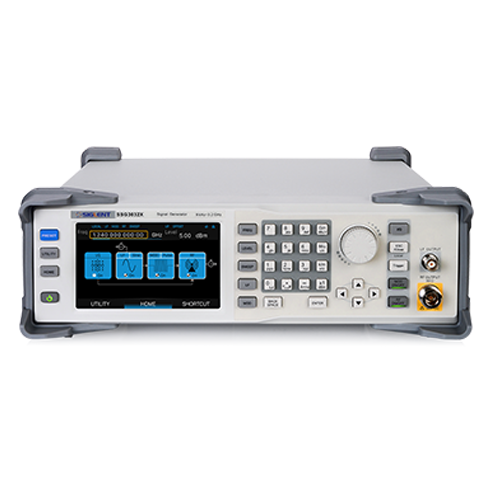

SIGLENT SSG3021X-IQE RF Generator (CW 9kHz~2.1GHz; IQ 10MHz~2.1GHz)

Frequency range:

- CW MODE 9kHz~2.1GHz

- IQ MODE 10MHz~2.1GHz

Frequency resolution: 0.01Hz

Amplitude resolution: 0.01dB

Max output power: +20dBm (typ.)

Level accuracy: 0.7dB (typ.)

Phase noise: -110dBc/Hz @1GHz, offset 20kHz (typ.)

Display: 5 inch capacitance touch screen, RGB(800*480)

Standard accessories

Quick-start

USB-cable

Calibration-certificate

Power cord

Optional accessories

Pulse train generator: SSG3000X-PT

Rack mount kit: SSG-RMK

USB-GPIB adapter: USB-GPIB

Upgrade 2.1GHz to 3.2GHz: SSG3000X-21BW32

Upgrade 2.1GHz to 3.2GHz (with external IQ): SSG3000X-IQE-21BW32
