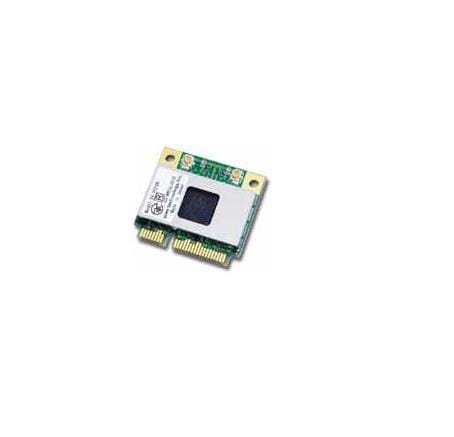

Silex Technology SX-PCEGN(P) WiFi Modules 802.11b/g/n, 2.4GHz single bnd, 2x2 MIMO
Manufacturer: Silex Technology Model: SX-PCEGN(P) - Contact
Data Rate: 300 Mb/s
Frequency: 2.4 GHz
Dimensions: 30 mm x 26.8 mm x 3 mm
Output Power: 16 dBm, 16.5 dBm, 17.5 dBm
Interface Type: PCIe
Protocol Supported: 802.11 b/g/n
Modulation Technique: DSSS (CCK, DQPSK, DBPSK), DSSS-OFDM (64QAM, 16QAM, QPSK, BPSK)
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Antenna Connector Type: U.FL
Operating Supply Voltage: 3.3 V
Supply Current Receiving: 270 mA
Supply Current Transmitting: 630 mA
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: 0 C
