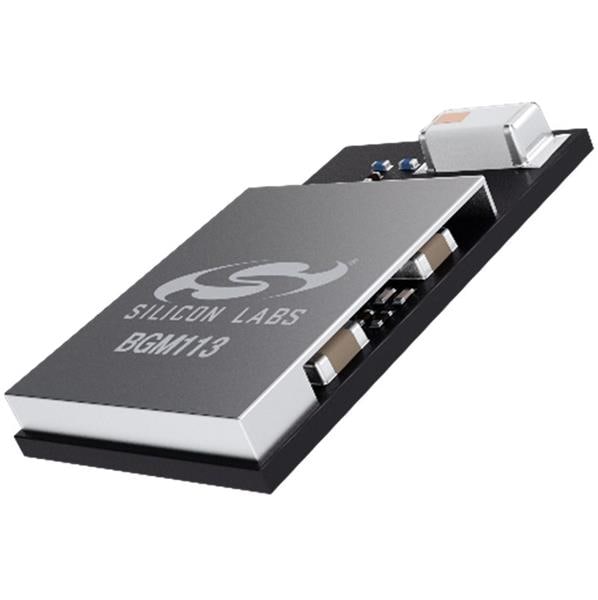

Silicon Labs BGM113A256V2R USB Adapter BGM113 Wireless Bluetooth Module, PCB, +3 dBm, 2.4 GHz, 256 kB flash, -40 to 85 C, Built-in Antenna

Core: ARM Cortex M4

Range: 50 m

Width: 9.15 mm

Height: 1.9 mm

Length: 15.73 mm

Antenna: Chip

Features: Integrated DC-DC Converter, Onboard Bluetooth Stack

Protocol: BLE, Bluetooth 4.2

Data Rate: 1 Mb/s

Frequency: 2.44 GHz

Shielding: Shielded

Dimensions: 15.73 mm x 9.15 mm x 1.9 mm

Memory Size: 256 kB

Sensitivity: - 92 dBm

Unit Weight: 1 g

Output Power: 3 dBm

Interface Type: GPIO, I2C, SPI, UART

Mounting Style: SMD/SMT

Frequency Range: 2.4 GHz to 2.4835 GHz

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 92 dBm

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 8.7 mA

Supply Current Transmitting: 8.2 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
