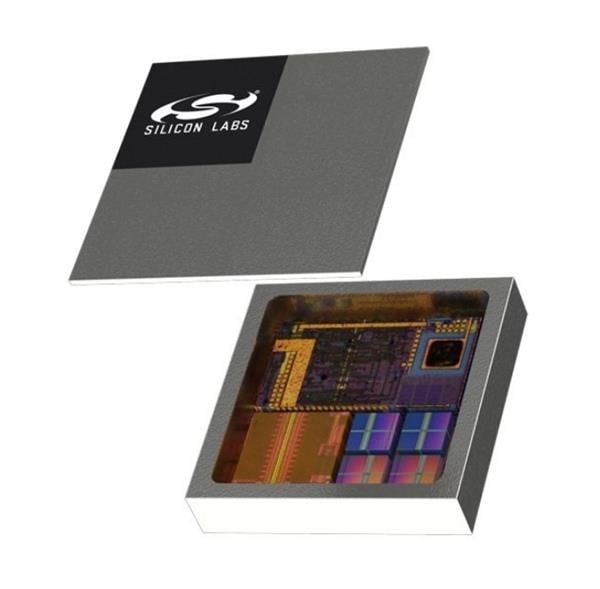

Silicon Labs BGM11S22F256GA-V2R Bluetooth Modules BGM11S Wireless Bluetooth Module, SiP, +8 dBm, 2.4 GHz, 256 kB flash, -40 to 85 C, Built-in Antenna

Core: ARM Cortex M4

Range: 200 M

Width: 6.5 mm

Height: 1.4 mm

Length: 6.5 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 4.2

Data Rate: 1 Mb/s

Frequency: 2.4 GHz

Modulation: GFSK

Sensitivity: - 90 dBm

Unit Weight: 772.700 mg

Output Power: 8 dBm

Interface Type: I2C, UART, USART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 90 dBm

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.85 V

Operating Supply Voltage: 1.85 V to 3.8 V

Supply Current Receiving: 8.7 mA

Supply Current Transmitting: 8.2 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
