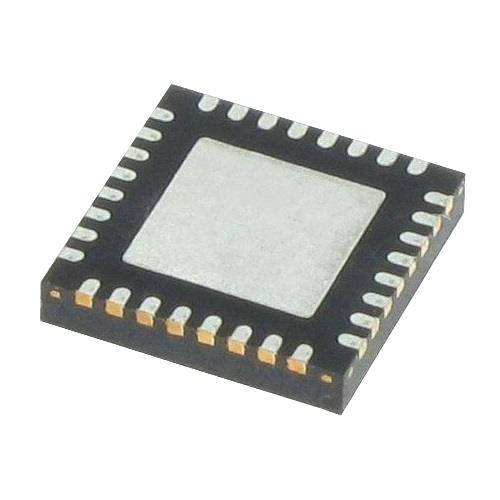

Silicon Labs EFR32MG1B232F256GM32-C0R Zigbee Mighty Gecko SoC, 2.4 GHz, 256 kB flash, 32 kB RAM, 19.5 dBm, QFN-32, mesh

Core: ARM Cortex M4

Width: 5 mm

Height: 0.85 mm

Length: 5 mm

Technology: Si

Sensitivity: - 92.5 dBm

Unit Weight: 476.833 mg

Output Power: 19 dBm

Data RAM Size: 32 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, SMBus, SPI, UART, USART

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Development Kit: SLWRB4154A

Number of Timers: 2 Timer

Processor Series: EFR32MG1

Maximum Data Rate: 1 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.85 V

Maximum Clock Frequency: 40 MHz

Supply Current Receiving: 8.7 mA

Supply Current Transmitting: 8.2 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
