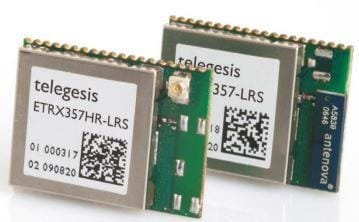

Silicon Labs ETRX357HR-LRS-R8 Zigbee Modules Telegesis Module ETRX357HR-LRS, 192k flash/12k RAM, Long Range, U.Fl, R308
Manufacturer: Silicon Labs Model: ETRX357HR-LRS-R8 - Contact
Data Rate: 250 kb/s
Frequency: 2.4 GHz
Dimensions: 25 mm x 19 mm
Sensitivity: - 106 dBm
Output Power: 20 dBm
Interface Type: UART
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.1 V
Antenna Connector Type: U.FL
Operating Supply Voltage: 2.1 V to 3.6 V
Supply Current Receiving: 33 mA
Supply Current Transmitting: 140 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
