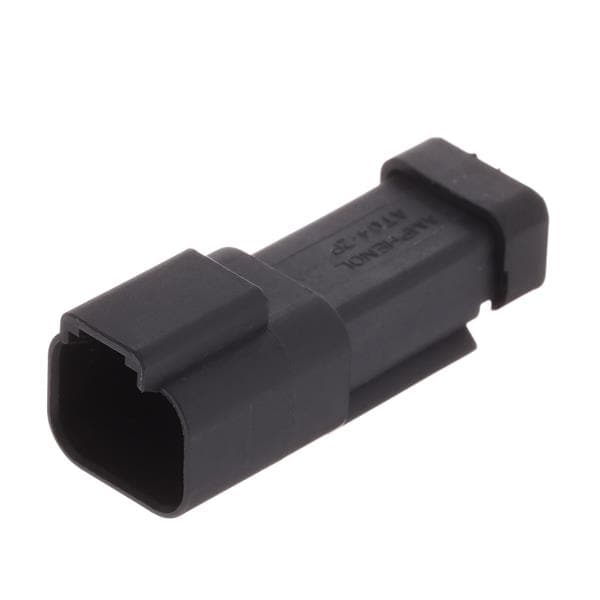

Amphenol SINE Systems AT04-2P-MM01BLK Connectors 2-Position Recept. Threaded Rear
Manufacturer: Amphenol SINE Systems Model: AT04-2P-MM01BLK - Contact
Color: Black
Gender: Receptacle (RP - Male)
Length: 46.2 mm
Insulation: Insulated
Contact Type: Pin
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: AT06-2Sx
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Description/Function: Contacts Sold Separately
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
