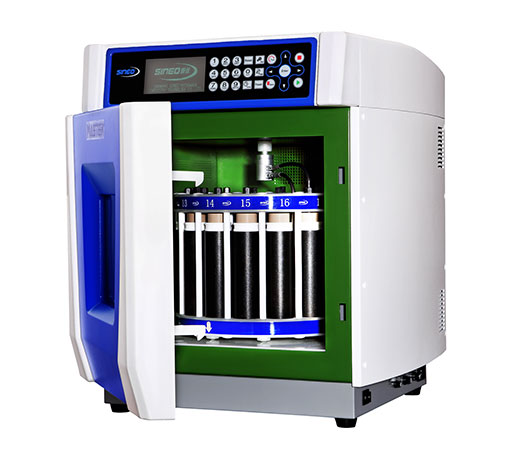

SINEO MASTER Ultra High Throughput Closed Microwave Digestion/Extraction Workstation

Power: 220-240 VAC, 50/60Hz, 16A

Installed power: 3600W

Maximum output power: 2200W, non-pulse continuous automatic variable frequency control

Cavity: 65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating

Door design: 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock

Video monitoring system (Optional): Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction

Pressure measurement and control system: Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa

Temperature measurement and control system: High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃

Inner vessel material: Modified TFM material

Chamber exhaust system: High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)

Working environment: 0-40 °C, 15-80%RH

Microwave source: 2450MHz, dual magnetron design

Outer vessel material: Explosion-proof outer vessel: made of aerospace composite fiber. high temperature and pressure resistance reach 600℃ and 66 Mpa(10000psi).

Whole physical size/weight: 550*670*700 mm, 70 KG

Passive pressure protection system: Adopt Safety Bolt design, quantitative and vertical pressure release when over pressure
