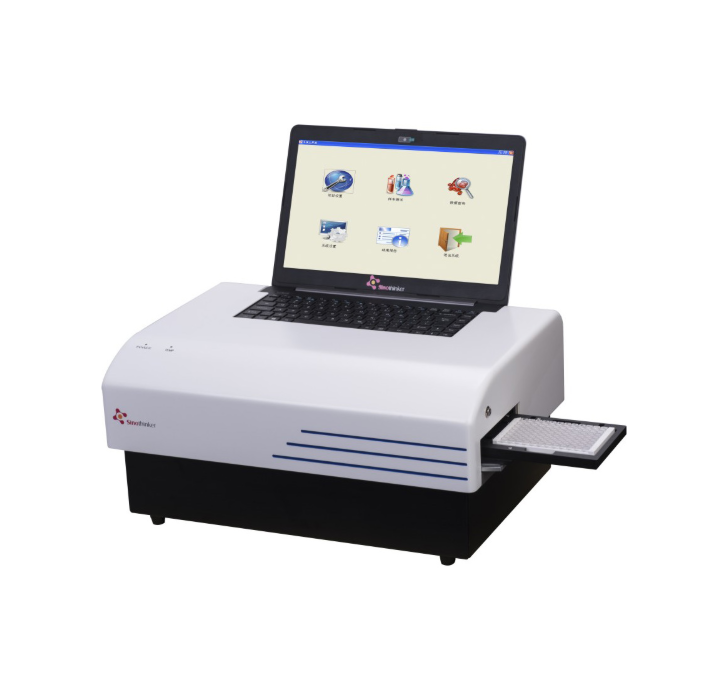

Sinothinker Semen Analyzer Chemistry & Immunoassay Analyzer (340, 405, 450, 492, 505, 560; 630nm)

Wavelength: 7 filters of 340, 405, 450, 492, 505, 560 and 630nm, with single and double wavelength setting

Light source: long—life high light LED cold light source, more than 100,000 hours working, no need to replace the light source lamp

Optical system: 8-channeI fiber spectroscopy system, automatically searching the central point reading.

Wavelength accuracy: ± 1nm , bandwidth: 8nm

Measuring range: 0.0 - 4.000Abs

Resolution: 0.001 Abs ( display) , 0.0001 Abs(internal calculation)

Stability: ≤± 0.005Abs

Channel difference: ≤+0.015Abs

Indication error: ≤± 0.015Abs

Temperature incubation precision ≤± 0.3˚C

Calculation mode: single—point, linearity, broken line, three—parameter, logistic curve etc.

Reading speed: single wavelength 10 seconds/plate, double wavelength 20 seconds/plate

Q.C. function: L—J, X, S, automatic storage of quality control data, can display and print multiple quality control charts.

Self—check function: self—check and calibration function

Printer: external printer, A4 paper report

Interface: RS—232 two—way communication interface, USB interface

Power supply: SMPS: ac110/220V±10%, 50/60Hz ±1Hz; 100VA

Working condition: Temp. 5˚C~40˚C; relative humidity: ≤85%

Dimensions: 50cm(L)*34cm(W)*24CM(H)

Weight: 14KG

Accessories

Power line1pcs

Grounding line1pcs

Fuse 3.15AL250v1pcs

Mouse1pcs

USB to network port conversion line1pcs

Software1set
