Sinothinker SK3002B1 Semi-auto Chemistry Analyzer (340,405,492,510,546,578,630nm)

Test mode: Kinetic, End point, Two point, Absorbance

Wavelength: 7 wavelengths filter: 340,405,492,510,546,578,630nm, 1 free position

Wavelength precision: ±2nm, width ≤10nm

Absorbance range: 0-4.500 Abs

Absorbance precision: outside 0.0001 Abs, inside 0.00001 Abs

10 incubators: 37˚C±0.3˚C; 3 timers, precision: ±0.1s

Carry over: < 1 %

Repeatability CV: < 1%

Incubator: 37˚C, 30℃, 25˚C, precision: ±0.1˚C

Sample volume: 0-3000 uL (500uL recommend)

Data Storage: 10000

Quality control curve: X SD CV% L-J quality control curve for every test item

Flow cell: 32 uL quartz glass, 10 mm

Lamp: Philips 6V 10W Halogen Lamp with long life

Screen: 7 inch color LCD

CPU: ARM series high Speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0˚C — 40˚C , Humidity: 80%

Power supply: 100-240VAC, 50-60HZ, 100VA

Dimension: 340(L)*270(W)*160(H)

Weight: 5 kg

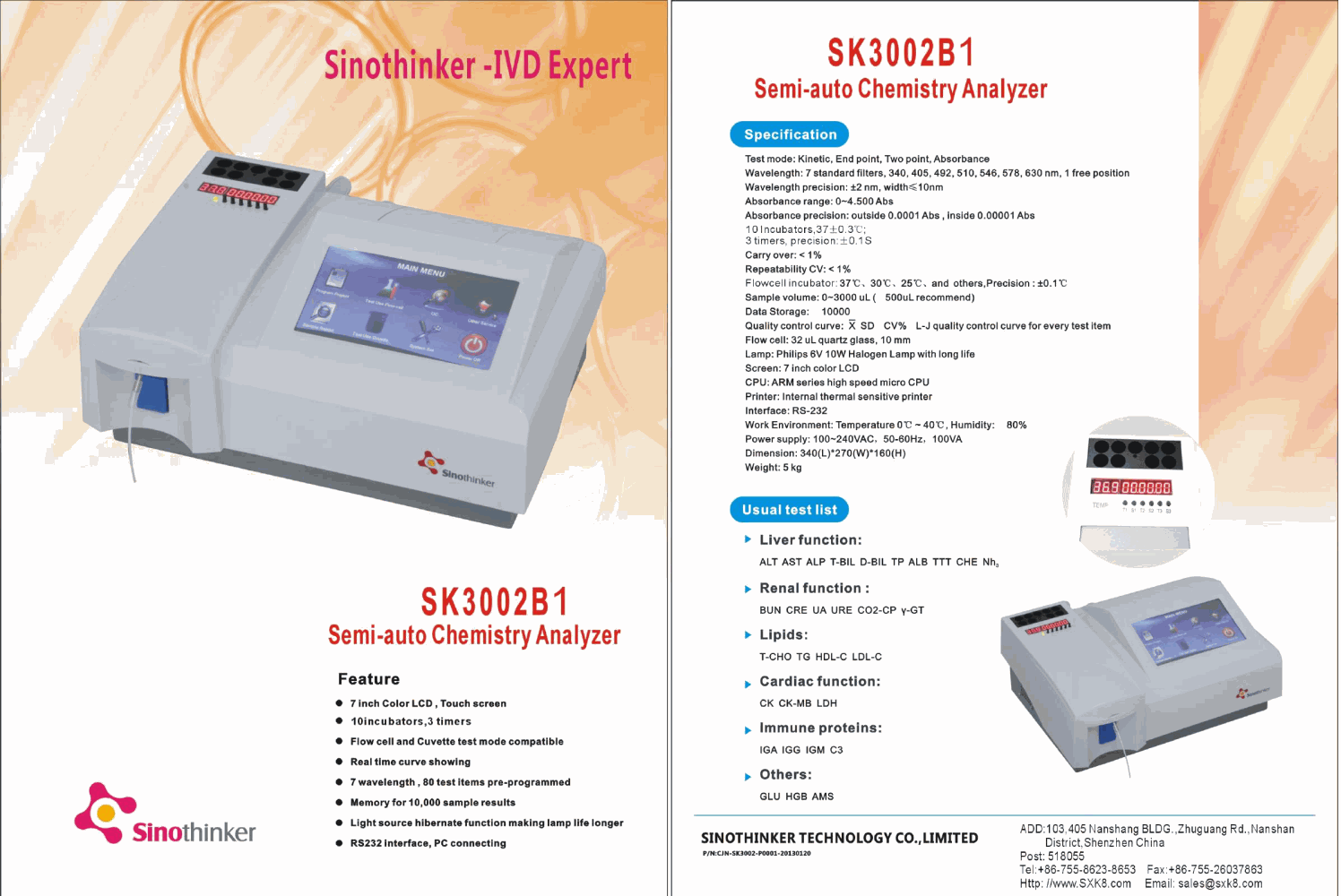

Datasheet
