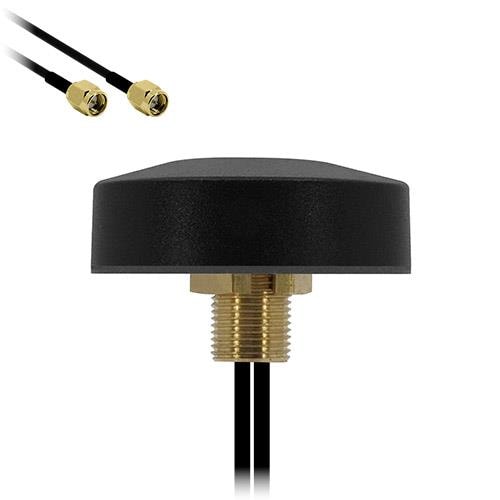

Siretta TANGO19/3M/SMAM/SMAM/S/S/20 Outdoor Antennas COMBO GPS/GSM QUAD BAND ANTENNA 28DBI 3M RG174 CABLE

Gain: 1 dBi, 3 dBi, 28 dBi

VSWR: 2.0:1, 1.5:1, 2

Style: Puck

Height: 14.5 mm

Length: 46 mm

Bandwidth: 5 MHz

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 1.57542 GHz

Impedance: 50 Ohms

Cable Type: RG174

Application: 2G/3G/4G, GPS

Unit Weight: 100 g

Cable Length: 3 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Screw Mount

Frequency Range: 850 MHz to 1.9 GHz

Number of Bands: 4 Band

Center Frequency: 1.57542 GHz

Ground Plane Size: 7 cm x 7 cm

Maximum Frequency: 1.9 GHz

Minimum Frequency: 850 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G
