Gain: 2 dBi
VSWR: 2.1

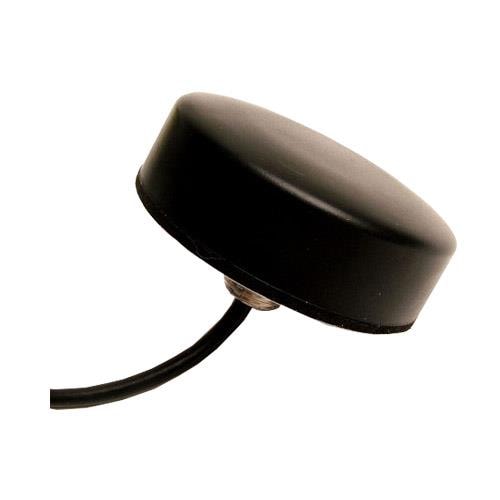

Style: Puck
Length: 15 mm
Diameter: 46 mm
Bandwidth: 100 MHz
Frequency: 2.4 GHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 1 M RG174
Application: Wireless Applications
Unit Weight: 90 g
Cable Length: 1 m
Polarization: Vertical
Power Rating: 50 W
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 2.4 GHz to 2.5 GHz
Number of Bands: 1 Band
Center Frequency: 2.45 GHz
Mechanical Style: Module
Maximum Frequency: 2.5 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 30 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
