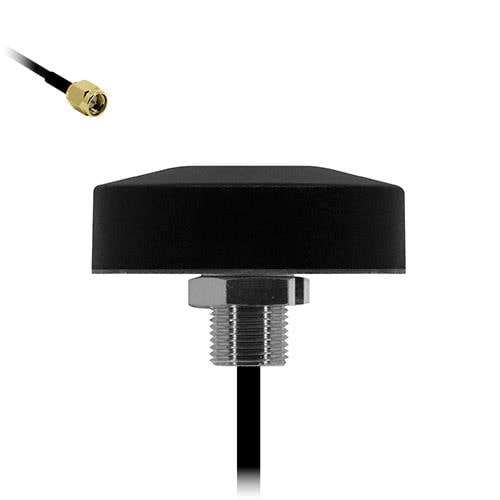

Siretta TANGO38/1M/SMAM/S/S/17 Passive Antenna 868MHZ ISM BAND BOLT THROUGH ANTENNA, 1M CABLE AND SMA MALE CONNECTOR

Gain: 2 dBi

VSWR: 1.5:1

Style: Puck

Length: 15 mm

Diameter: 46 mm

Bandwidth: 10 MHz

Frequency: 868 MHz

IP Rating: IP65, IP67

Impedance: 50 Ohms

Cable Type: 1 M RG174

Application: ISM Applications

Unit Weight: 90 g

Cable Length: 1 m

Polarization: Vertical

Power Rating: 50 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Module

Maximum Frequency: 868 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
