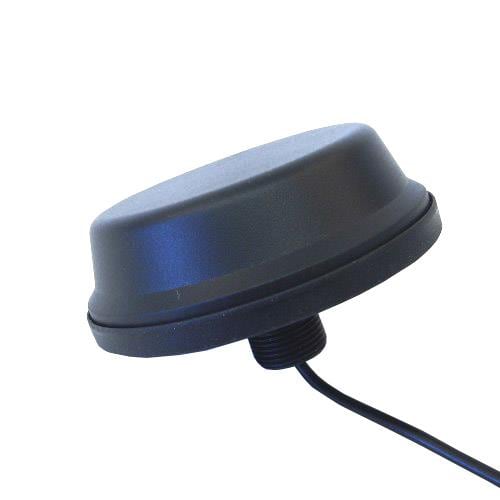

Siretta TANGO44/5M/LL/SMAM/S/S/19 Passive Antenna 5G/4G/DUAL BAND WI-FI/BLUETOOTH/LORA/SIGFOX PUCK ANTENNA SMA MALE CONNECTOR 5M LOW LOSS CABLE
Manufacturer: Siretta Model: TANGO44/5M/LL/SMAM/S/S/19 - Contact
Gain: 1 dBi, 4 dBi
VSWR: 2.3
Style: Puck
Length: 23 mm
Diameter: 80 mm
Frequency: 700 MHz to 960 MHz, 1.575 GHz to 2.7 GHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 5 M RG174
Application: Cellular Applications, Wireless Applications
Unit Weight: 110 g
Cable Length: 5 m
Polarization: Linear Vertical
Power Rating: 50 W
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 700 MHz to 2.7 GHz
Number of Bands: 2 Band
Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2400 MHz, 2500 MHz
Mechanical Style: Module
Maximum Frequency: 2.7 GHz
Minimum Frequency: 700 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
