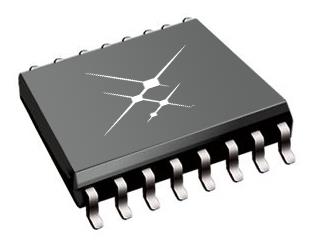

Skyworks Solutions Inc. SI8662BD-B-IS General Purpose 5 kV 4 forward & 2 reverse 6-channel isolator

Polarity: Unidirectional

Shutdown: Shutdown

Data Rate: 150 Mb/s

Pulse Width: 5 ns

Unit Weight: 50 mg

Qualification: AEC-Q100

Isolation Type: Capacitive Coupling

Mounting Style: SMD/SMT

Output Current: 10 mA

Development Kit: si86xxiso-kit

Forward Channels: 4 Channel

Reverse Channels: 2 Channel

Isolation Voltage: 5000 Vrms

Maximum Fall Time: 4 ns

Maximum Rise Time: 4 ns

Moisture Sensitive: Yes

Number of Channels: 6 Channel

Protocol Supported: General Purpose

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.375 V

Pd - Power Dissipation: 415 mW

Propagation Delay Time: 8 ns

Pulse Width Distortion: 4.5 ns

Operating Supply Voltage: 2.5 V to 5.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
