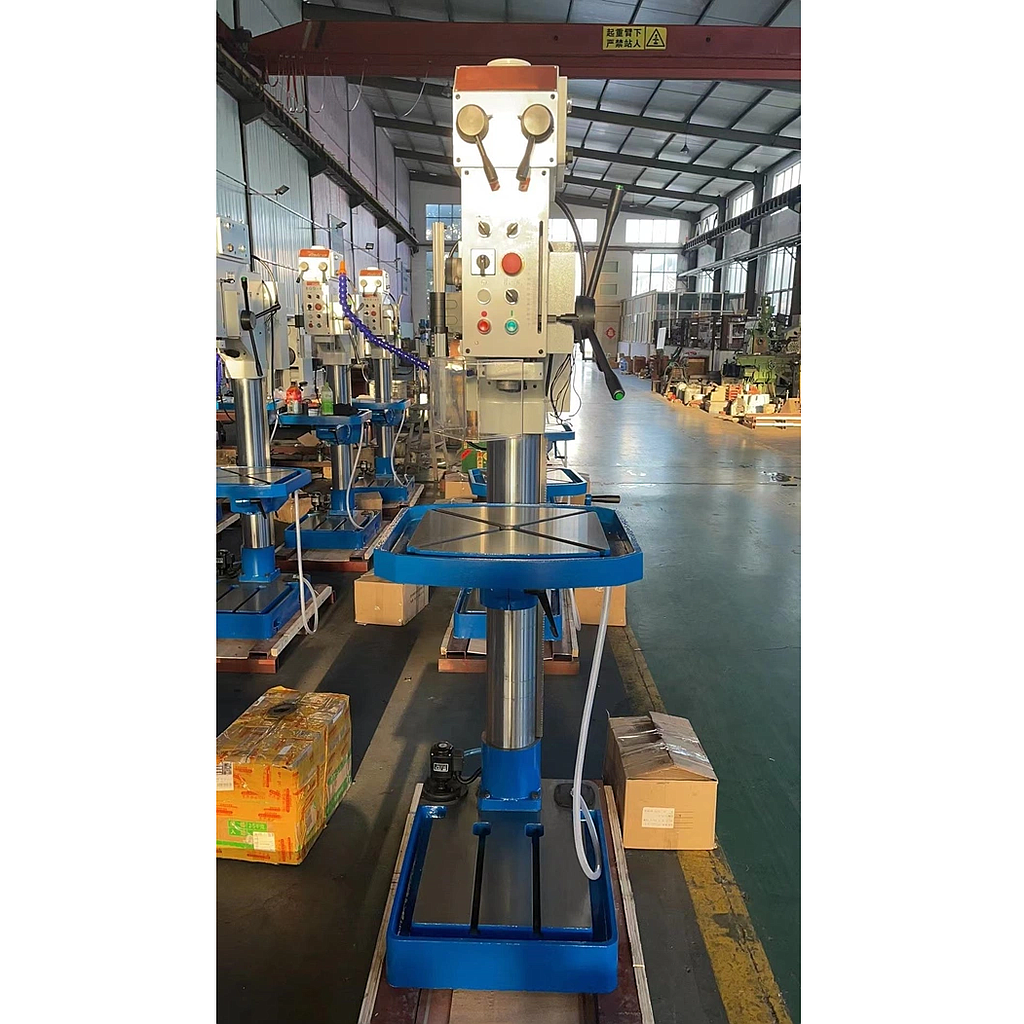

SMAC Z5040E Vertical Drilling Machine (40mm)

Base Table Size: 500*730mm

Table Size: 560*560mm

T-Slot Size: 14mm

Column Diameter: 150mm

Main Motor: 1.5kW

Power: 380V/50Hz

Drilling Capacity: 40mm

Tapping Capacity: M24

Spindle Feeds: 0.1-0.2/2steps

Spindle Speed: 50-1450rpm

Spindle Steps: 12steps

Spindle Stroke: 155mm

Distance Between Spindle Center to Column: 350mm

Wroking Table Rotate: ±45°

Spindle Nose: MT-4

Spindle Down Travel: Auto

Distance Between Spindle to Base Table: 800mm

Cooling Motor: 40W

Standard Accessories:

Coolant system

Machine vise 150*150mm hardened jaws, grinded guideways

Working table fix handle

Key Type Drilling chuck 1-16mm B16 with key

Working lamp

Tool box

Spindle cover with switch

Mors taper MK2 and MK3
