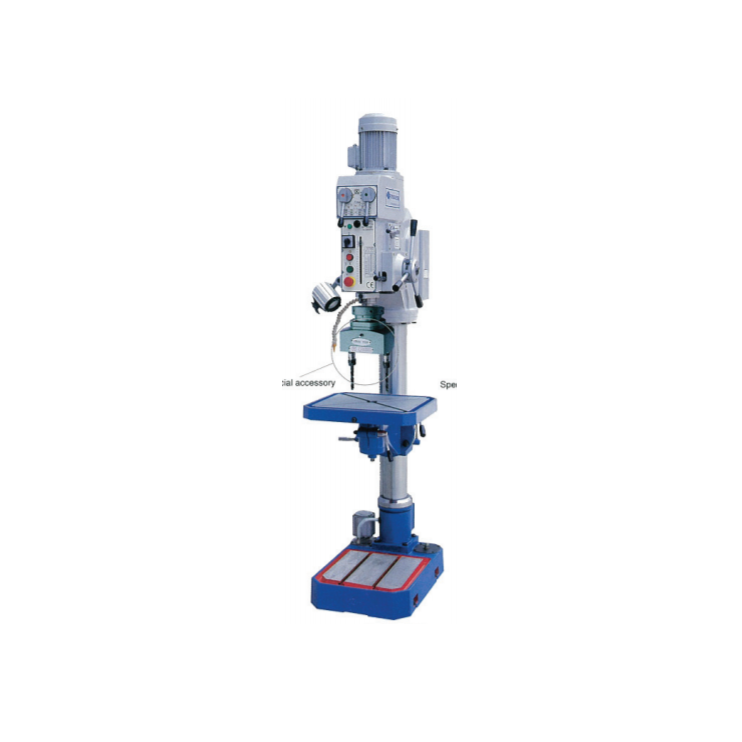

Max drilling diameter and tapping diameter: Φ35/M20
Max travel of spindle: 160
Max distance from spindle to generating line of column: 320
Max distance between spindle end to the worktable surface: 585
Max distance from spindle end to the surface of base worktable: 1140
Max travel of worktable and bracket (Mannual/Mechanical): 545
Swivel angle of worktable: ±45°
Spindle taper bore: 4
Spindle speed steps: 12
Spindle speed range: 125-3030
Spindle feed steps: 3
Spindle feed range: 0.1~0.3
Dimension of worktable: 500x420
Effective working area of worktable: 400x360
Diameter of column: Φ120
Power of motor: 1/1.2
Machine dimension: 835x510x1730
Packing dimension: 940x545x2290
Net weight/Gross weight: 430/475
Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
