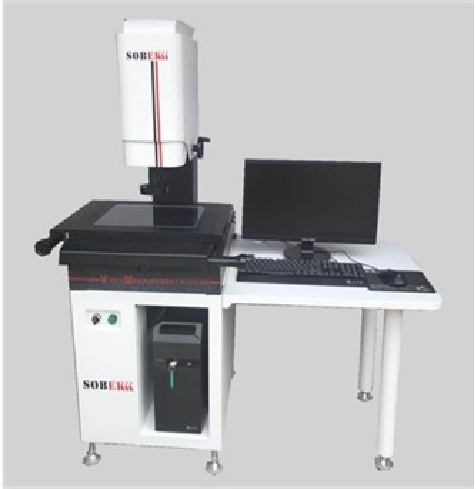

Measuring range(mm): 300*200*200
Machine size(mm): 750*1300*1500
Weight（kg）: 300
Max. load（kg）: 25
Accuracy of X-Y axis: 3+L/200µm
Accuracy of Z axis: 5+L/200µm
XYZ resolution: 1.0μm
Repeatability（mm）: 0.003
Linear encoder: glass linear scale
Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera
Liner guide: Z axis: Taiwan “HIWIN” P grade linear guideway; XY use "V" type linear guideway
Optics: 6:5:1 continual zoom step lens
Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software: SBK-E manual 2.5D measure software
Control system: SBK3000 control box, USB port, adjustable light
Profile illumination: LED cold lighting,256 level programmable brightness adjustment
Surface illumination: LED cold lighting with segmented independent control & 256 level programmable brightness adjustment
Operated mode: handle wheel
Option device: Renishaw MCP probe, 0.5X, 2X extend lens
