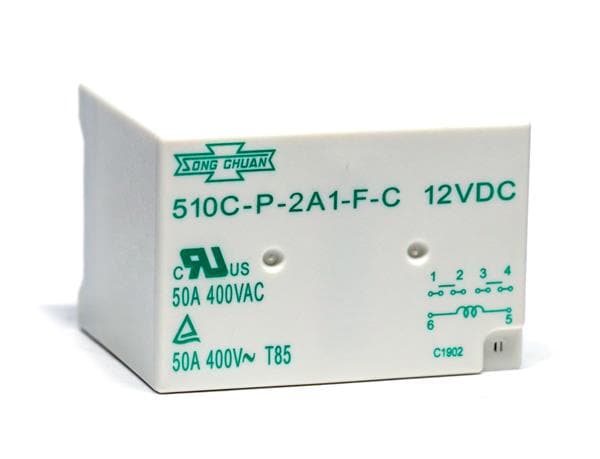

Song Chuan 510C-P-2A1-F-C-12VDC Heavy Duty Heavy duty relay, DPDM, contact gap 3.0mm, Class F, flux tight, 50A 400VAC
Manufacturer: Song Chuan Model: 510C-P-2A1-F-C-12VDC - Contact
Width: 34.75 mm
Height: 38.8 mm
Length: 51.5 mm
Coil Type: Non-Latching
Unit Weight: 113.778 g
Coil Current: 449 mA
Coil Voltage: 12 VDC
Mounting Style: Through Hole
Coil Resistance: 26.7 Ohms
Coil Termination: Solder Pin
Contact Material: Silver (Ag)
Power Consumption: 5.4 W
Switching Voltage: 400 VAC
Relay Contact Form: 2 Form A (DPDT-NO)
Contact Termination: Solder Pin
Contact Current Rating: 50 A
