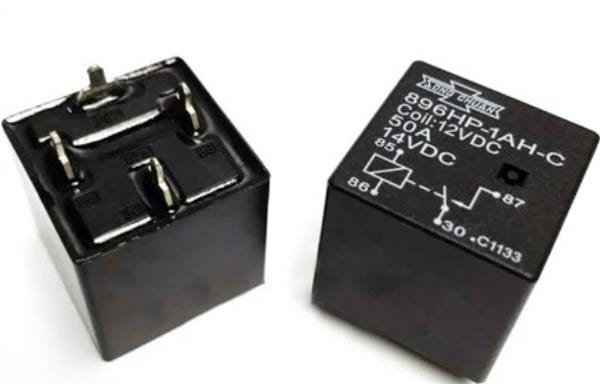

Song Chuan 896HP-1AH-C-12VDC Automotive Relays 50A, Automotive Relay
Manufacturer: Song Chuan Model: 896HP-1AH-C-12VDC - Contact
Width: 25.8 mm
Height: 25 mm
Length: 25.8 mm
Unit Weight: 40 g
Coil Current: 133 mA
Coil Voltage: 12 VDC
Contact Form: SPST (1 Form A)
Mounting Style: PCB Mount
Coil Resistance: 90 Ohms
Coil Termination: PC Pin
Contact Material: Silver Tin Oxide (AgSnO)
Power Consumption: 1.6 W
Switching Voltage: 28 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: PC Pin
Contact Current Rating: 50 A
