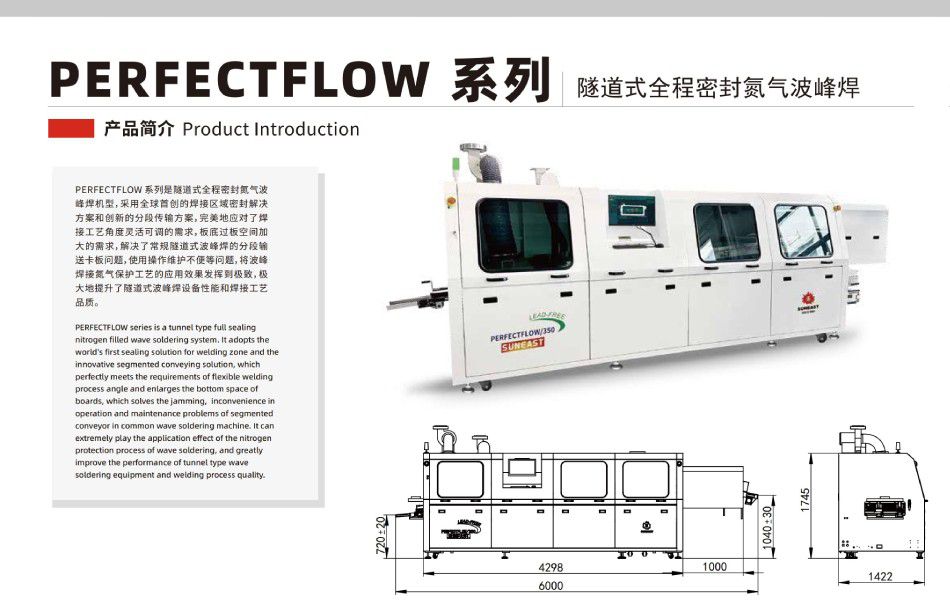

Dimension:L*W*H(mm): 6000×1692×1750
Weight: Approx.2300kg
Power Supply: 3PH 380V 50HZ
Start up Power: 45KW
Normal Running Power: Approx.11KW
Control System: PC+PLC
Spraying movement: Step motor
Spraying Pressure: 0.2Mpa~0.4Mpa
Flux Flow Control: Option
Auto Flux Filling: Standard
Exhausting: Top exhaust
Exhausting Pipe Diameter(mm); φ250
Exhaust fan power: 750
Preheating Mode: Hot air convection/IR
Temperature Control Mode: PID
Preheating Zone Quantity: 3
Preheating Zone Length(mm): 1800
Preheating Temperature Range: Room temperature~200℃
Warm-up Time(min): Approx.12min(setting:150℃)
Preheating Blower Motor: 250W 3PH 220VAC
Width(mm): 50~610
PCB Conveying Direction: L→R(Option:R→L)
Conveying Speed(mm/min): 500~1800
Conveying Height(mm): 750±20
Available Component Height(mm): Top 120, Bottom 15
Conveying Speed Control Mode: Closed loop stepless speed regulation by inverter
Finger: Heavy type double hook finger; Option:Special jig for fixture
Conveying Angle: 4.5~6.3°
Solder Pot Type: Mechanical
Solder Pot Material: Casting Iron
Wave Height Adjustment Inverter: Digital Control by PC
Cooling type: Nitrogen knife cooling
Solder Pot Heating Power: 18KW
Max Solder Pot Temperature: 300℃
Solder Pot Capacity: Approx.640kg
Wave Driving Power: 180W*2 3PH 220VAC
Solder Pot Warm-up Time: Approx.150min(setting:250℃)
Temperature Control Mode: PID
Finger Cleaning System: Brush
Nitrogen purity : 99.999%
Nitrogen consumption: Approx.25m³/h
Nitrogen pressure: 0.4Mpa~0.6Mpa
