Lens mount: M72 *0.75, optical back focal length: 12 mm
Dimension: 80 mm × 80 mm × 46.3 mm
Weight: Approx. 465 g (1.0 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: -20 °C to 55 °C (-4 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity: 5% to 90% RH, non-condensing

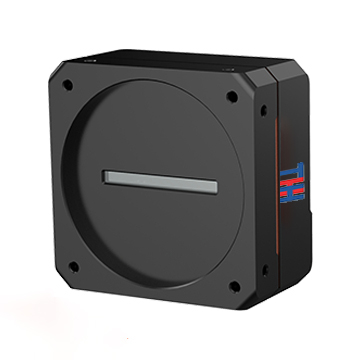

Type: 8K GigE Line Scan Cameras，Mono
Sensor type: CMOS
Pixel size: 5 μm
Resolution: 8192 × 4
Image mode: Supports 1-line, 2-TDI, 4-TDI
Max. line rate: Standard mode: 14 kHz @Mono 8, 7 kHz @Mono 10/12, 9.4 kHz @Mono 10Packed/12Packed High-bandwidth mode: 40 kHz @Mono 8, 20 kHz @Mono 10/12
Dynamic range: 54.8 dB
SNR: 40.3 dB
Gain: Supports 1.2 ×, 2.7 ×, 4.6 ×
Exposure time: 3 μs to 10 ms
Exposure mode: Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
Mono/color: Mono
Pixel format: Mono 8/10/10p/12/12p
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output
Trigger mode: External trigger, internal trigger
External trigger mode: Line trigger, frame trigger, line + frame trigger
Client software: MVS or the third-party software meeting with GigE Vision protocol
Operating system: 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
Compatibility: GigE Vision V2.0, GenICam
Certification: CE, FCC, RoHS, KC
Data interface: GigE
Digital I/O: 12-pin Hirose connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 12.4 W@12 VDC
Interface: RS232, RS485, IO, Ethernet, Serial
Thời gian phơi sáng: 2 μs
Chống chói chống lóa cực đại: Có
