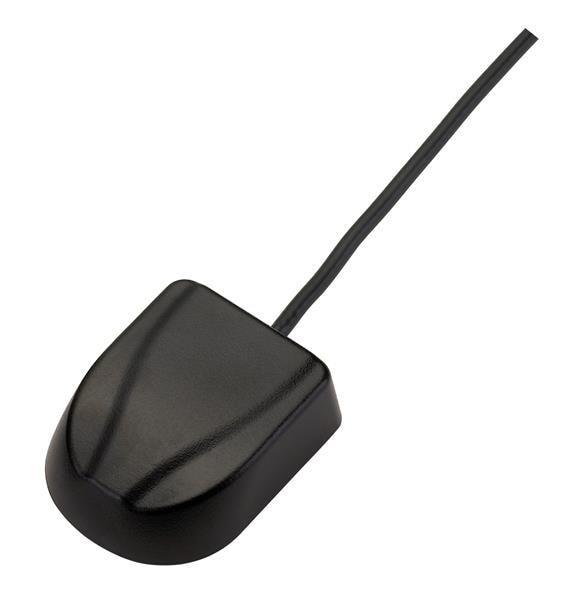

Taoglas AA.108.301111 Active Antenna Titan AA.108 GPS/GALILEO Adhesive Mount, 3M RG-174 SMA(M)

Gain: 21.8 dB to 31 dB

VSWR: 1.92

Style: Panel

Width: 25 mm

Height: 4 mm

Length: 25 mm

Bandwidth: 10 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Technology: GPS L1 / Galileo E1

Application: Satellite Applications

Unit Weight: 70 g

Cable Length: 3 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Module

Ground Plane Size: 25 mm x 25 mm x 4 mm

Maximum Frequency: 1.57842 GHz

Minimum Frequency: 1.57242 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
