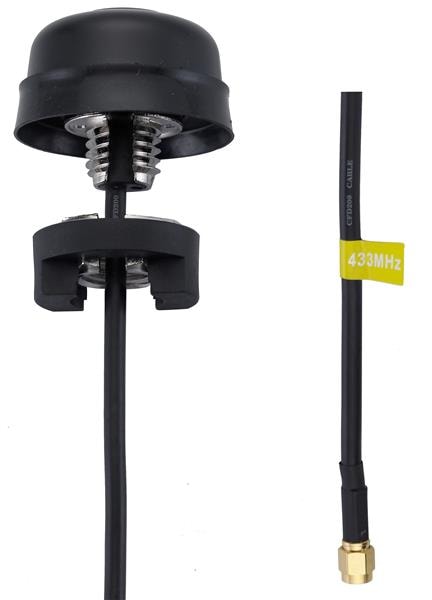

Taoglas IS.01.B.305111 Passive Antenna Hercules IS.01 433MHz 0dBi Permanent Mount Antenna, 3m NFC-200 SMA(M)

Gain: 1.6 dBi

VSWR: 1.8:1

Style: Dome

Length: 29 mm

Diameter: 49 mm

IP Rating: IP67, IP69K

Impedance: 50 Ohms

Cable Type: NFC-200

Technology: ISM

Application: Mesh Networks, Vehicle Assets, Outdoor Assets, ISM Application

Unit Weight: 214 g

Cable Length: 3 m

Polarization: Linear

Power Rating: 5 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 1 Band

Center Frequency: 433 MHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 460 MHz

Minimum Frequency: 400 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRaWAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
