Gain: 4 dBi, 4.5 dBi, 6 dBi

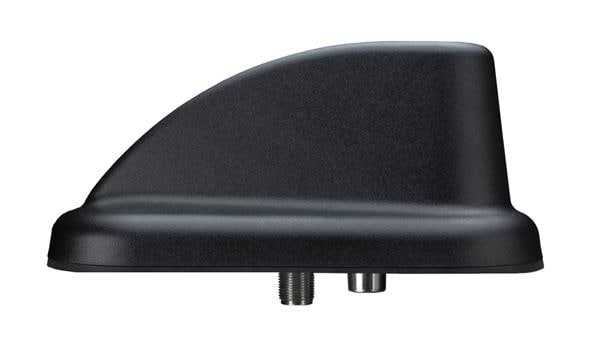

Style: Sharkfin
Width: 80.91 mm
Height: 80.8 mm
Length: 183.64 mm
IP Rating: IP65
Impedance: 50 Ohms
Cable Type: 3 M RG174 x 4
Application: Cellular Application, Satellite Tracking/Navigation, Wireless Application
Unit Weight: 440 g
Cable Length: 300 mm
Polarization: LHCP, RHCP
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 4 Band
Center Frequency: 535 kHz, 1605 kHz, 108 MHz, 2328 MHz, 2450 MHz, 5500 MHz, 1575.42 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 5.83 GHz
Minimum Frequency: 88 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: FAKRA A, FAKRA C, FAKRA I, FAKRA K
Protocol - GPS, GLONASS: Galileo, GPS
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
