Gain: 31.7 dB, 32.4 dB, - 5.12 dB, - 5.17 dB, - 4.56 dB, - 3.33 dB, - 4.86 dB, - 4.93 dB, - 3.62 dB, - 3.08 dB, - 3.06 dB
VSWR: 2.5, 2:1

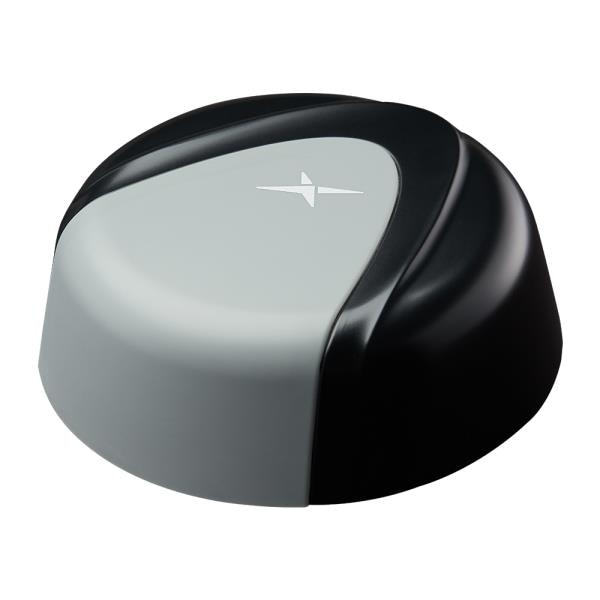

Style: Dome
Length: 55 mm
Diameter: 161 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 5 M RG174LL x 11
Application: Next Generation OEM Automotive Connectivity, Multimedia Navigation, Telematics Systems, Fleet Management Applications, Real-time HD Video Streaming, FirstNet Responder Routers
Unit Weight: 3 kg
Cable Length: 300 mm
For Use With: Vehicle Roofs
Power Rating: 2 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 13 Band
Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 3400 MHz, 3600 MHz, 4200 MHz, 5200 MHz, 5500 MHz, 5800 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 6 GHz
Minimum Frequency: 600 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: SMA Male, RP-SMA Male
Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
