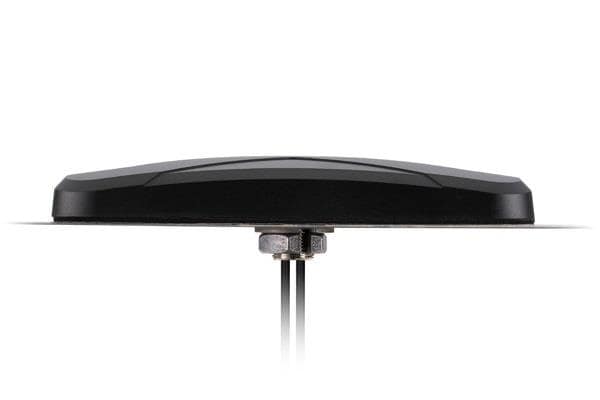

Taoglas MA450.K.LBICG.004 Storm MA450 5in1 Storm MA450 5in1 Permanent Mount GNSS, LTE MIMO, WI-FI MIMO Antenna 216*93*31mm
Manufacturer: Taoglas Model: MA450.K.LBICG.004 - Contact
Gain: 29 dBi, 29 dBi, 32 dBi
VSWR: 2:1, 3, 2
Style: Dome
Width: 93 mm
Height: 31 mm
Length: 216 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: CFD-200, RG-174
Technology: Cellular, GPS, LTE, WiFi, MiMo
Application: BeiDou, Galileo, GLONASS, GPS
Cable Length: 3 m
For Use With: Telematics,, IoT Applications
Polarization: Linear, RHCP
Mounting Style: Screw Mount
Electrical Type: MIMO
Number of Bands: 5 Band
Center Frequency: 1.561098 GHz, 1.57542 GHz, 1.602 GHz
Mechanical Style: Module
Maximum Frequency: 3.6 GHz
Minimum Frequency: 698 MHz
Termination Style: RP-SMA Male, SMA Male
Antenna Connector Type: RP-SMA Male, SMA Male
Protocol - GPS, GLONASS: GNSS
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
