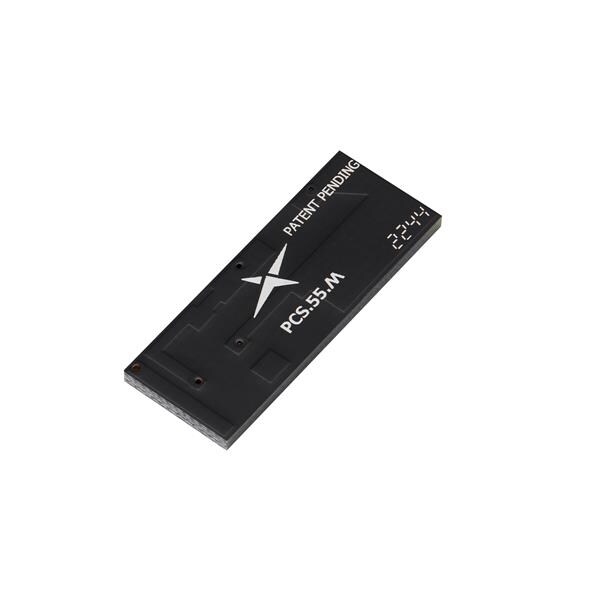

Taoglas PCS.55.M Small OTS LTE Dielectric Antenna LTE FR4 ANT

Gain: - 3.3 dBi, - 1.8 dBi, - 1 dBi, - 0.3 dBi, 0 dBi, 0.2 dBi, 0.4 dBi, 1.6 dBi, 3.7 dBi

Style: Rectangular

Width: 10 mm

Height: 1.6 mm

Length: 27 mm

Impedance: 50 Ohms

Application: Compact Asset Trackers, Handsets, Handheld IoT Devices, Tablets

Polarization: Linear

Power Rating: 2 W

Mounting Style: SMD/SMT

Electrical Type: Chip

Number of Bands: 9 Band

Center Frequency: 657.5 MHz, 722 MHz, 773 MHz, 840 MHz, 920 MHz, 1.472 GHz, 1.581 GHz, 1.932 GHz, 2.595 GHz

Mechanical Style: Chip

Ground Plane Size: Linear

Maximum Frequency: 2.69 GHz

Minimum Frequency: 617 MHz

Termination Style: Solder

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: GPS, GLONASS, Galileo, BEIDOU

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular, LTE, 5G/4G
