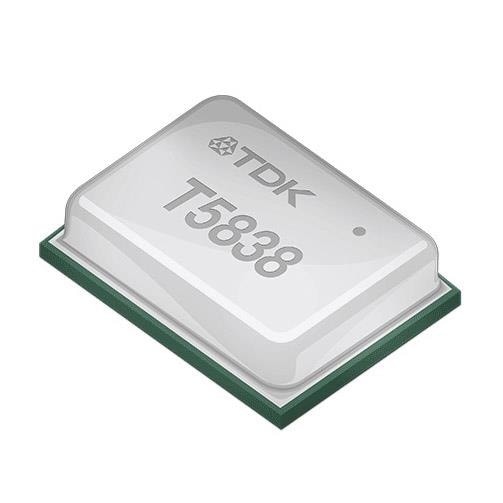

TDK InvenSense MMICT5838-00-012 Multi Mode Bottom Port PDM Digital Output Multi-Mode Microphone
Manufacturer: TDK InvenSense Model: MMICT5838-00-012 - Contact
Depth: 0.98 mm
Width: 2.65 mm
Length: 3.5 mm
Port Type: Bottom
Output Type: Digital
Sensitivity: - 41 dB
Mounting Style: SMD/SMT
Frequency Range: 27 Hz to 20 kHz
Operating Supply Current: 310 uA
Operating Supply Voltage: 1.8 V
SNR - Signal to Noise Ratio: 68 dBA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
