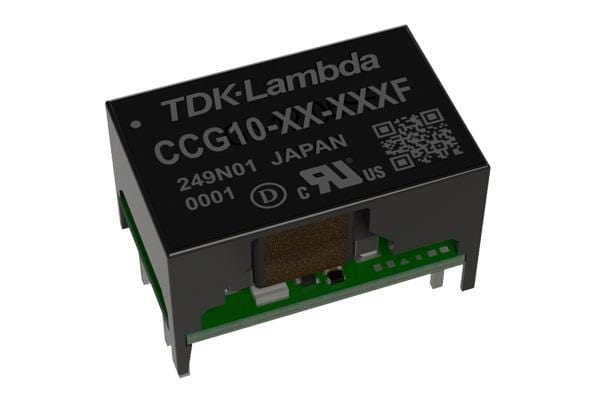

TDK-Lambda CCG10-24-03SF Isolated 10W 24Vin 3Vout Single DIP
Manufacturer: TDK-Lambda Model: CCG10-24-03SF - Contact
Width: 12.4 mm (0.488 in)
Height: 11.5 mm (0.453 in)
Length: 19 mm (0.748 in)
Industry: Industrial
Output Power: 10 W
REACH - SVHC: Details
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 9 V
Input Voltage, Nominal: 24 V
Output Voltage-Channel 1: 3.3 V
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
