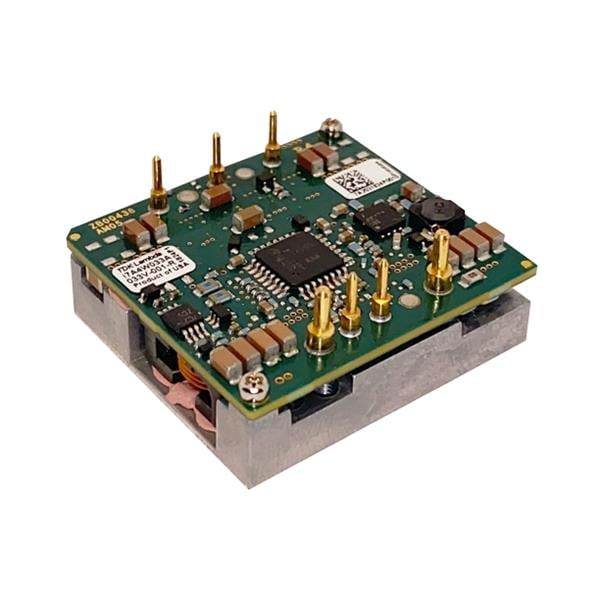

TDK-Lambda i7A12060A008V-0C3-R Non-Isolated / PoL 400W 9-8Vin 0.8-8Vout 60A NL OCP BP
Manufacturer: TDK-Lambda Model: i7A12060A008V-0C3-R - Contact
Width: 36.83 mm (1.45 in)
Height: 12.7 mm (0.5 in)
Length: 34.04 mm (1.34 in)
Industry: Industrial
Dimensions: 34.04 mm x 36.83 mm x 12.7 mm
Output Power: 400 W
REACH - SVHC: Details
Mounting Style: Through Hole
Number of Outputs: 1 Output
Input Voltage - Max: 18 V
Input Voltage - Min: 9 V
Input Voltage, Nominal: 12 V
Output Current-Channel 1: 60 A
Output Voltage-Channel 1: 800 mV to 8 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
