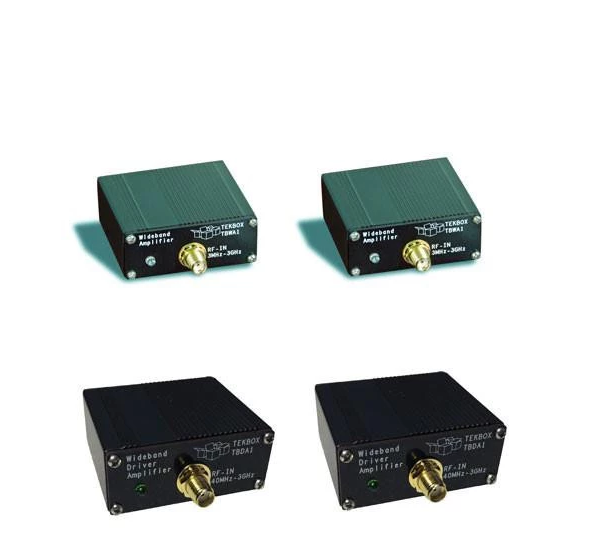

TBWA2/40dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB output compression point @ 2GHz: +20dBm
Reverse isolation S12, 0.1 …6GHz: 40dB
Noise Figure @ 2GHz: 5 dB
Gain:
1 MHz: 30 dB
10 MHz: 40.2 dB
100 MHz: 40.2 dB
500 MHz: 40 dB
1 GHz: 39.5 dB
3 GHz: 36.4 dB
4.5 GHz: 34.6 dB
6 GHz: 34.7 dB
TBWA2/20dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S12, 0.1 …6GHz: 23dB
Noise Figure @ 2GHz: 4.5 … 5 dB
Gain:
1 MHz: 14.8 dB
10 MHz: 20.2 dB
100 MHz: 20.2 dB
500 MHz: 20 dB
1 GHz: 19.8 dB
2 GHz: 19 dB
3 GHz: 17.6 dB
4.5 GHz: 17.4 dB
6 GHz: 15.4 dB
TBDA1/14dB
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +40dBm
3rd order output intercept point @ 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise Figure: 3 … 4 dB
Gain:
25 MHz: 12 dB
50 MHz: 13.8 dB
100 MHz: 14.2 dB
500 MHz: 14.2 dB
1 GHz: 14.1 dB
1.5 GHz: 14.2 dB
2 GHz: 13.6 dB
2.5 GHz: 13.8 dB
3 GHz: 14 dB
TBDA1/28dB
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +6dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +39.8dBm
3rd order output intercept point @ 2 GHz: +42.8dBm
Reverse isolation S12: < -40dB
Noise Figure: 3.1 … 4.1 dB
Gain:
25 MHz: 26 dB
50 MHz: 28.4 dB
100 MHz: 28.6 dB
500 MHz: 28.6 dB
1 GHz: 28.8 dB
1.5 GHz: 28.3 dB
2 GHz: 27.2 dB
2.5 GHz: 28.5 dB
3 GHz: 28.9 dB
