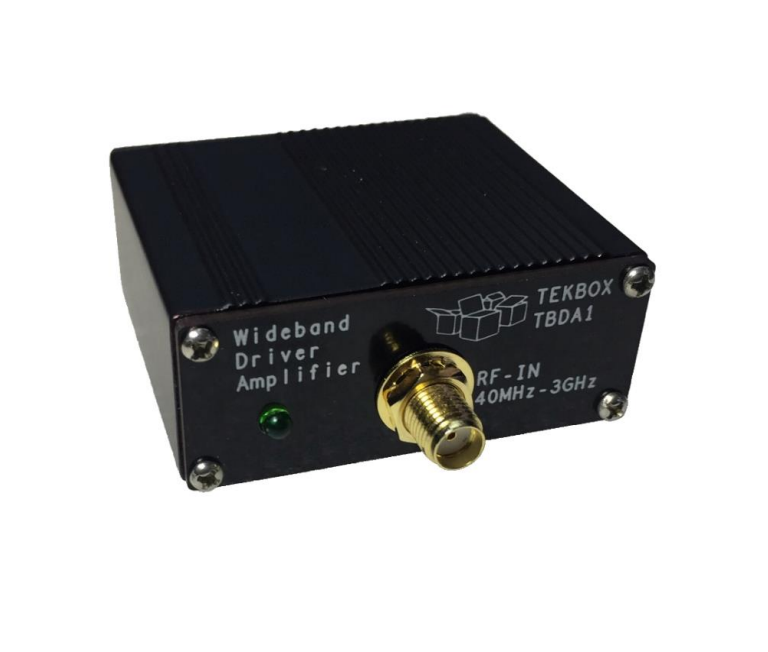

Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply voltage: 5 V, typ. 225 mA, Mini-USB-B connector
Maximum supply voltage: 5.5 V
Maximum input power: +6 dBm
1 dB output compression point @ 40 MHz: +21.5 dBm
1 dB output compression point @ 2 GHz: +22.5 dBm
3rd order output intercept point @ 40 MHz: +39.8 dBm
3rd order output intercept point @ 2 GHz: +42.8 dBm
Reverse isolation S12: < -40 dB
Noise figure: 3.1 … 4.1 dB
Gain @ 25 MHz: 26 dB
Gain @ 50 MHz: 28.4 dB
Gain @ 100 MHz: 28.6 dB
Gain @ 500 MHz: 28.6 dB
Gain @ 1 GHz: 28.8 dB
Gain @ 1.5 GHz: 28.3 dB
Gain @ 2 GHz: 27.2 dB
Gain @ 2.5 GHz: 28.5 dB
Gain @ 3 GHz: 28.9 dB
