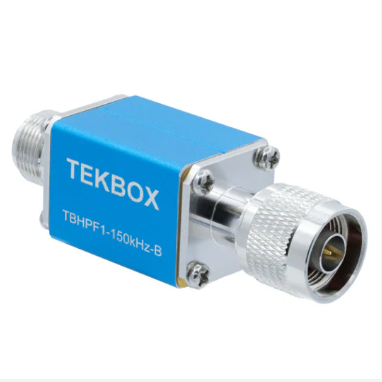

Tekbox TBHPF1-150kHz-B High Pass Filter (50Ω, 110 kHz – 3 GHz)
Manufacturer: Tekbox Model: TBHPF1-150kHz-B - Contact
High Pass Filter, symmetric, reflective, 50 Ohm
3dB bandwidth: 110 kHz – 3 GHz
S11, 150 kHz – 110 MHz: < -18 dB
Topology: 5 th order Chebyshev
Filter capacitor voltage rating: 100V
Filter inductor saturation current: 0.75 A
Maximum input power at frequencies 300 kHz – 1 GHz: 10W
Connectors: N-Male / N-Female
Dimensions: 26 x 26 x 82 mm
Weight: ca. 100g
