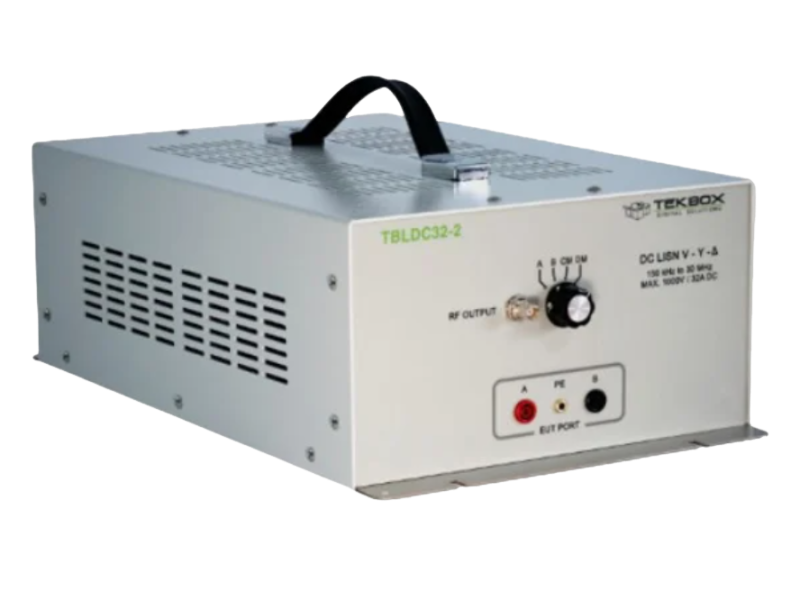

Tekbox TBLDC32-2 V-Y-Δ DC-Line Impedance Stabilization Network (9 kHz ~ 30 MHz)

Frequency range: 9 kHz to 30 MHz

Max. continuous current: 25A

Max. current for 15 minutes: 32A Max.

DC – voltage: 1000 V

Mode A, mode B impedance: 150 ± 30 Ω

Common mode impedance: 150 ± 30 Ω

Differential mode impedance: 150 ± 30 Ω

Phase at EUT-port: 0 ± 40°

EUT-port to AE-port isolation, CM: > 20 dB

EUT-port to AE-port isolation, DM: > 40 dB

Longitudinal conversion loss: > 26 dB

Voltage division factor: 20 ± 3 dB

DC-resistance: 80 mΩ per path typ.

Air core inductors

Rotary selection switch for path A, B, CM, DM

AE-port, EUT-port terminals: 4mm, safety

Measurement connector: 50 Ω BNC

Dimensions, W x H x L: 282 x 150 x 480 mm

Weight: ca. 9 kg

Operating Temperature Range: +5 °C … + 40 °, 5% to 80% RH, no condensation
