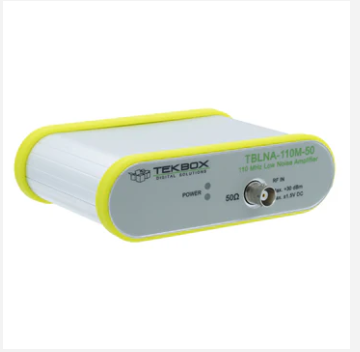

General specification
Frequency range: DC – 110 MHz
Gain: 40 dB, typ. ( ≙ linear voltage gain 100)
RF-connectors: BNC-female
Input specification
Input impedance: 50 Ω
Input return loss: > 16 dB, typ.
Input Noise Voltage: < 1.5 nV/√Hz ; 500 Hz–60 MHz: typ. 1nV/√Hz
Maximum input level: -25 dBm ( ≙ 0.036 Vpp ); for output saturation
Input protection: Pin-diode limiter
Maximum ratings: +30 dBm in a 50 Ohm system / ± 0.7V DC max. input rating (± 1.5V DC, 1s)
Output specification
Output impedance: 50 Ω
Output return loss: > 30 dB, typ.
P1dBout : +15 dBm (≙ 3.5 Vpp); output saturation
IP3out : +28 dBm
DC offset: < 10mV at output; input terminated with 50 Ohm
Supply specification
Power-connector: Coaxial power socket; 2 mm / 5.5 mm; positive center conductor
Indicator LEDs: Power ON, Power Good
Operating voltage: 12 V; external power supply 100 V – 240 V, 50/60 Hz
Current consumption: 250 mA
Operating temperature range: -20°C to +50°C
Dimensions: W 135 mm x H 40 mm x L 110 mm
Weight: 330 g
