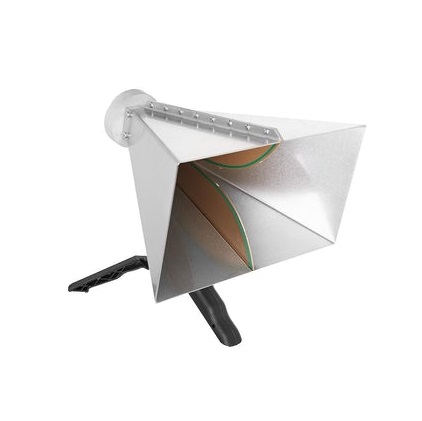

Tekbox TBMA4 Double Ridge Horn Antenna
Manufacturer: Tekbox Model: TBMA4 - Contact
Type: double ridged horn
Frequency range: 1 GHz – 8 GHz
Nominal impedance: 50 Ω
Connector: N type female
Maximum continuous input RF power: 100 W
Isotropic gain: 6 … 14 dBi
Antenna factor: 24 … 43 dB/m
Front to back ratio: avg. 20 dB
Voltage Standing Wave Ratio (VSWR): < 3:1 over the entire frequency range; < 2:1 average
Width: 241 mm (9.49 “)
Height: 153 mm (6.03 “)
Depth: 214 mm (8.44 “)
Weight: 1.4 kg (3.08 lbs)
Tripod Adapter Thread Size: ¼”
Indexed rear mounting flange
