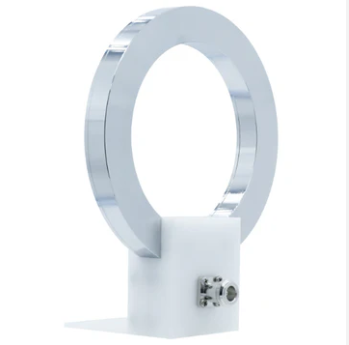

Tekbox TBRE101 Loop Antenna (30 Hz – 100 KHz)

Antenna Type: Receiving Loop

Frequency range: 30 Hz–100 KHz (usable frequency range: 10 Hz-1 MHz)

Standards: MIL-STD-461G / RE101

Loop Diameter: 13.3cm

Loop construction: 36 turns of 7 strand 41 AWG Litz wire

DC resistance of the loop coil: 10Ω (Nominal)

Self inductance of the loop coil: 385 µH

Output connector: N-female, 50 Ω

Antenna conversion factor: Within ±3 dB compared to the theoretical validation factor for standard RE101 loop in MIL-STD-461G

Mechanical Dimensions: L x W x H: 10.62 cm x 15.2 cm x 19.1 cm (4.18” x 5.98” x 7.52”)

Weight: 0.5 kg (1.1 lbs)
