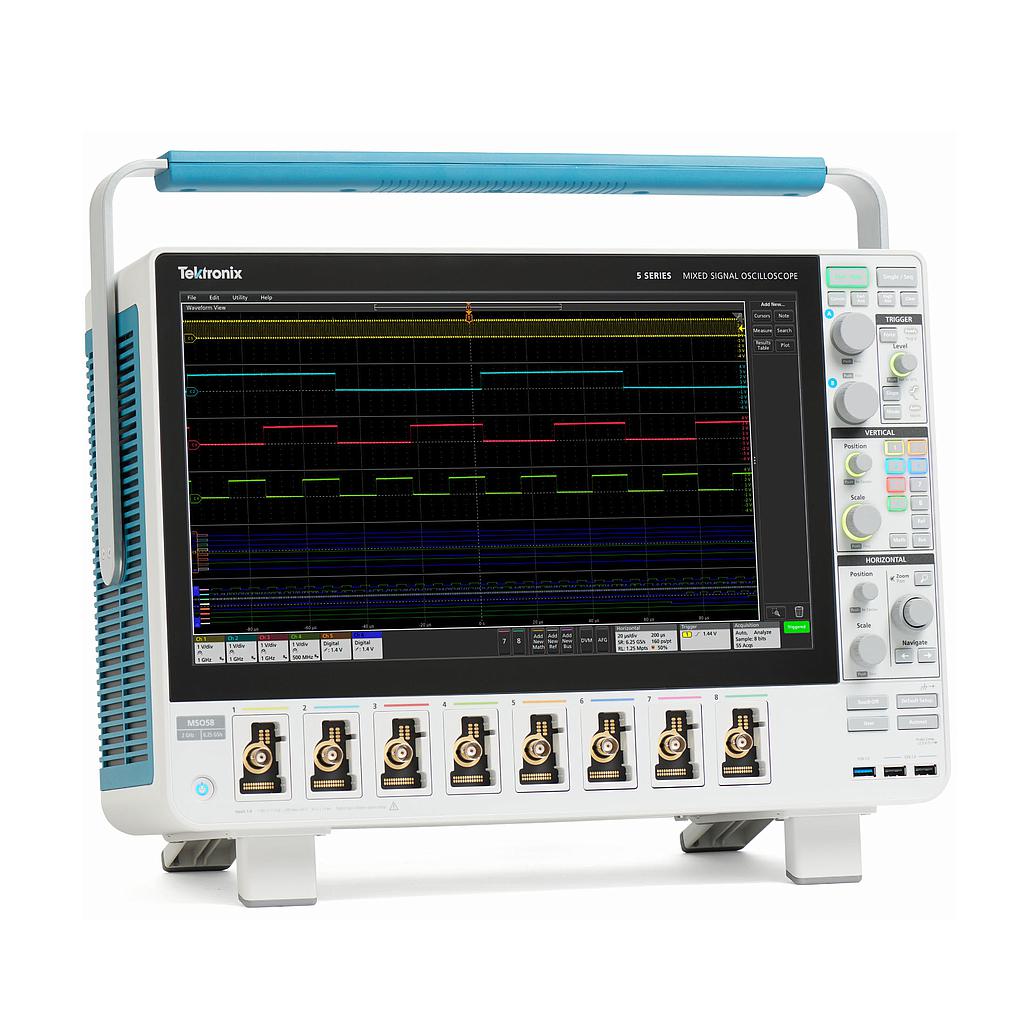

FlexChannel inputs: 4
Maximum analog channels: 4
Maximum digital channels (with optional logic probes): 32
Bandwidth (caculated rise time): 1 GHz (400 ps)
ADC Resolution: 12 bits
Sample Rate: 6.25 GS/s on all analog / digital channels (160 ps resolution)
Waveform Capture Rate: >500,000 wfms/s
Arbitrary/Function Generator (opt.): 13 predefined waveform types with up to 50 MHz output
Vertical system - analog channel
Input impedance: 50 Ω ± 1% 1 MΩ ± 1% with 13.0 pF ± 1.5 pF (< 2 GHz models)
Input sensitivity range:
1 MΩ 500 µV/div to 10 V/div in a 1-2-5 sequence
50 Ω 500 µV/div to 1 V/div in a 1-2-5 sequence
Maximum input voltage:
50 Ω: 5 VRMS, with peaks ≤ ±20 V (DF ≤ 6.25%)
1 MΩ: 300 VRMS , CAT II
Vertical system - analog channel
Absolute maximum input voltage, typical: ±42 V peak
Minimum voltage swing, typical: 400 mV peak-to-peak
Input impedance, typical: 100 kΩ
Horizontal system
Time base range: 200 ps/div to 1,000 s/div
Sample rate range:
1.5625 S/s to 6.25 GS/s (real time)
12.5 GS/s to 500 GS/s (interpolated)
Trigger system
Trigger modes: Auto, Normal, and Single
Trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup and Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
Display
Display type: 15.6 in. (395 mm) liquid-crystal TFT color display
Display resolution: 1,920 horizontal x 1,080 vertical pixels (High Definition)
Power source
Power consumption: 400 Watts maximum
Source voltage:
100 - 240 V ±10% at 50 Hz to 60 Hz
115 V ±10% at 400 Hz ±10%
