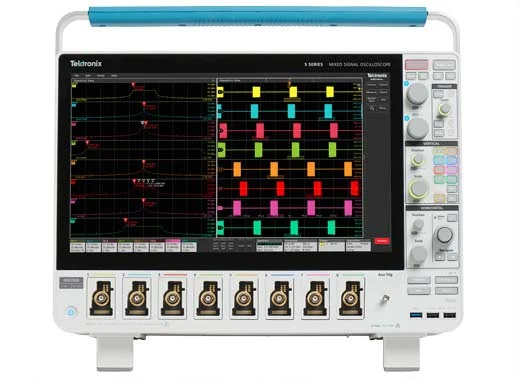

FlexChannel inputs 4
Maximum analog channels 4
Maximum digital channels (with
optional logic probes) 32
Bandwidth (calculated rise time) : 500 MHz (800 ps)
DC Gain Accuracy 2 GHz models, 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div), derated at 0.1 %/°C above 30°C
2 GHz models, 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div), derated at 0.1 %/°C above 30°C
< 2 GHz models, 50 Ω, 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div), derated at 0.1 %/°C above 30°C
ADC Resolution 12 bits
Vertical Resolution 8 bits @ 6.25 GS/s
12 bits @ 3.125 GS/s
13 bits @ 1.25 GS/s (High Res)
14 bits @ 625 MS/s (High Res)
15 bits @ 312.5 MS/s (High Res)
16 bits @ ≤125 MS/s (High Res)
Sample Rate 6.25 GS/s on all analog / digital channels (160 ps resolution)
Record Length (std.) 62.5 Mpoints on all analog / digital channels
Record Length (opt.) 125 Mpoints on all analog / digital channels
Waveform Capture Rate >500,000 wfms/s
Arbitrary/Function Generator (opt.) 13 predefined waveform types with up to 50 MHz output
DVM 4-digit DVM (free with product registration)
Trigger Frequency Counter 8-digit frequency counter (free with product registration)
Bandwidth selections 20 MHz, 250 MHz, and the full bandwidth value for your model
Input coupling DC, AC
Input impedance 50 Ω ± 1%
1 MΩ ± 1% with 14.5 pF ± 1.5 pF (2 GHz models)
1 MΩ ± 1% with 13.0 pF ± 1.5 pF (< 2 GHz models)
Input sensitivity range
1 MΩ 500 µV/div to 10 V/div in a 1-2-5 sequence
50 Ω 500 µV/div to 1 V/div in a 1-2-5 sequence
umber of channels 8 digital inputs (D7-D0) per installed TLP058 (traded off for one analog channel)
Vertical resolution 1 bit
Maximum input toggle rate 500 MHz
Minimum detectable pulse width,
typical
1 ns
Thresholds One threshold per digital channel
Threshold range ±40 V
Threshold resolution 10 mV
Arithmetic Add, subtract, multiply, and divide waveforms and scalars
Algebraic expressions Define extensive algebraic expressions including waveforms, scalars, user-adjustable variables, and results of parametric
measurements. Perform math on math using complex equations. For example (Integral (CH1 - Mean(CH1)) X 1.414 X VAR1)
Math functions Invert, Integrate, Differentiate, Square Root, Exponential, Log 10, Log e, Abs, Ceiling, Floor, Min, Max, Degrees, Radians, Sin,
Cos, Tan, ASin, ACos, and ATan
Relational Boolean result of comparison >, <, ≥, ≤, =, and ≠
Logic AND, OR, NAND, NOR, XOR, and EQV
Filtering function User-definable filters. Users specify a file containing the coefficients of the filter
FFT functions Spectral Magnitude and Phase, and Real and Imaginary Spectra
FFT vertical units Magnitude: Linear and Log (dBm)
Phase: Degrees, Radians, and Group Delay
FFT window functions Hanning, Rectangular, Hamming, Blackman-Harris, Flattop2, Gaussian, Kaiser-Bessel, and TekExp
