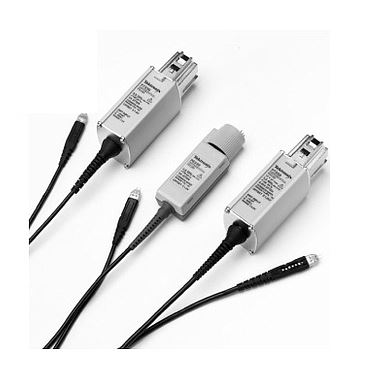

TEKTRONIX P7330 High-Performance Differential Probe (3.5GHz, 15V)
Manufacturer: TEKTRONIX Model: P7330 - Contact

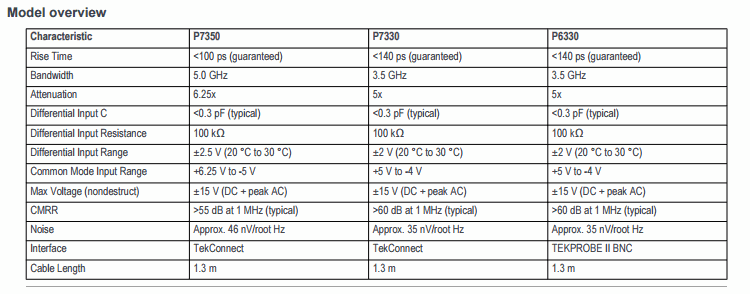

Characteristic P7350
Rise Time <140 ps="" guaranteed="" br=""> Bandwidth 3.5 GHz
Attenuation 5x
Differential Input C <0.3 pf="" typical="" br=""> Differential Input Resistance 100 kΩ
Differential Input Range ±2 V (20 °C to 30 °C)
Common Mode Input Range +5 V to -4 V
Max Voltage (nondestruct) ±15 V (DC + peak AC)
CMRR >60 dB at 1 MHz (typical)
Noise Approx. 35 nV/root Hz
Interface TekConnect
Cable Length 1.3 m
