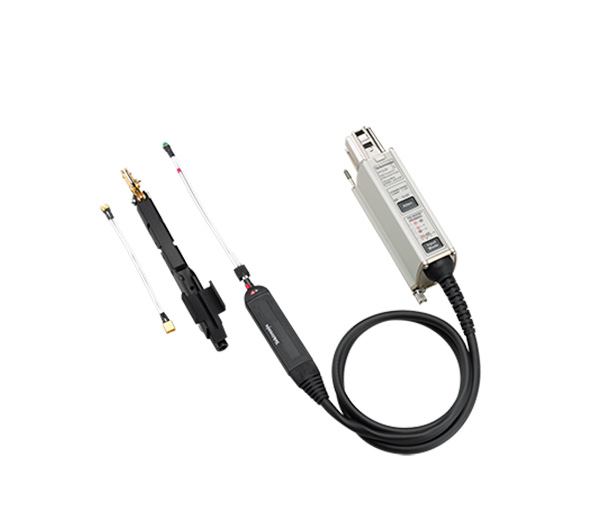

TEKTRONIX P7513A Probe (13GHz)
Manufacturer: TEKTRONIX Model: P7513A - Contact
Bandwidth (typical, probe
only)
>13 GHz
Rise time (10-90%) (typical,
probe only)
<40 ps="" 28="" ps="" br=""> Attenuation
(user selectable)
5X or 12.5X
Differential input range ±0.75 V (5X)
±1.75 V (12.5X)
Operating voltage window +4.0 to –2.0 V
Offset voltage range +2.5 to –1.5 V, A-B
mode
+3.4 to –1.8 V, other
modes
CMRR (Differential mode) >60 dB at DC
>40 dB at 50 MHz
>30 dB at 1 GHz
>20 dB at 7 GHz
>15 dB at 13 GHz
Interface TekConnect™
Cable length 1.3 meter
