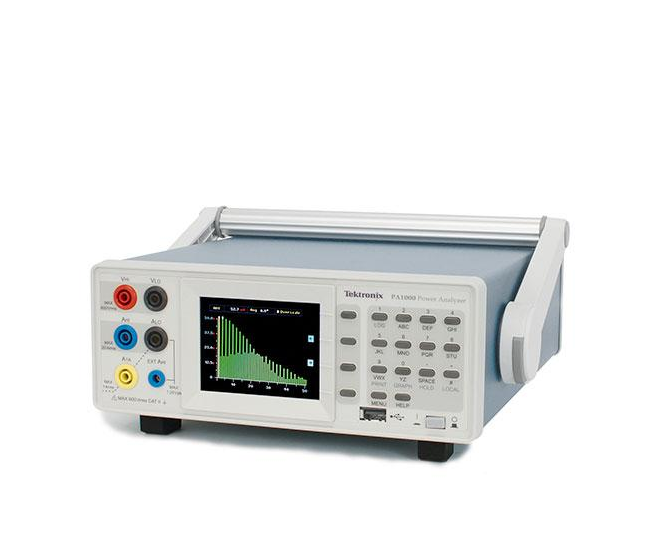

Voltage ranges: 1000 Vp, 500 Vp, 200 Vp 100 Vp, 50 Vp, 20 Vp, 10 Vp
Current ranges (20 A shunt): 100 Ap, 50 Ap, 20 Ap, 10 Ap, 5 Ap, 2 Ap, 1 Ap, 0.5 Ap, 0.2 Ap, 0.1 Ap
Current ranges (1 A shunt): 2.0 Ap, 1.0 Ap, 0.4 Ap, 0.2 Ap, 0.1 Ap, 0.04 Ap, 0.02 Ap, 0.01 Ap, 0.004 Ap, 0.002 Ap
Measurement accuracy - voltage (45 Hz to 850 Hz) : ± 0.05% of Reading ± 0.05% of Range ± 0.05 V
Measurement accuracy - current (45 Hz to 850 Hz) : ± 0.05% of Reading ± 0.05% of Range ± (50 µV/Zext)
Measurement accuracy - power:
Watts accuracy : ± 0.075% of Reading ± 0.075% of Range (PF=1)
VA accuracy: ± 0.075% of Reading ± 0.075% of Range
PF Accuracy: Cos θ -cos [ θ± ( Vh1 ph.err± Ah1 ph.err)] ± 0.002
Measurement accuracy - harmonic magnitude and phase (typical) (10 Hz to 1 MHz): ± 0.02% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± 0.05 V
Dimensions: 102 x 223 x 285 mm
Weight: 3,2kg
Include: Voltage lead, Power Cord, USB host-to-device interface cable, Documentation CD, Certificate of calibration
Datasheet
Specifications
All specifications apply to all models unless noted otherwise.
- Voltage and current ranges
-
- Voltage ranges
- 1000 Vpeak, 500 Vpeak, 200 Vpeak, 100 Vpeak, 50 Vpeak, 20 Vpeak, 10 Vpeak
- Current ranges (20 A shunt)
- 100 Apeak, 50 Apeak, 20 Apeak, 10 Apeak, 5 Apeak, 2 Apeak, 1 Apeak, 0.5 Apeak, 0.2 Apeak, 0.1 Apeak
- Current ranges (1 A shunt)
- 2.0 Apeak, 1.0 Apeak, 0.4 Apeak, 0.2 Apeak, 0.1 Apeak, 0.04 Apeak, 0.02 Apeak, 0.01 Apeak, 0.004 Apeak, 0.002 Apeak
- Measurement accuracy - voltage
-
- Voltage accuracy, VRMS (45 Hz to 850 Hz) 1
- ± 0.05% of Reading ± 0.05% of Range ± 0.05 V
- Voltage accuracy, VRMS (10 Hz to 45 Hz, 850 Hz to 1 MHz, typical)
-
± 0.1% of Reading ± 0.1% of Range ± (0.02*F)% of Reading ± 0.05 V (typical)
- Voltage accuracy, DC (typical)
- ± 0.1% of Reading ± 0.1% of Range ± 0.05 V
- Effect of common mode (typical)
-
100 V, 100 kHz < 500 mV
- Measurement accuracy - current
-
- Current accuracy, ARMS (45 Hz to 850 Hz) 1
-
± 0.05% of Reading ± 0.05% of Range ± (50 µV/Zext)
- Current accuracy, ARMS (10 Hz to 45 Hz, 850 Hz to 1 MHz, typical)
-
± 0.1% of Reading ± 0.1% of Range ± (0.02*F)% of Reading ± (50 µV/Zext) (typical)
- Current accuracy, DC (typical)
-
± 0.1% of Reading ± 0.1% of Range ± (100 µV/Zext)
- Current - peak inrush accuracy (100 Apeak range)
-
2% of Range ± 20 mA
- Effect of common mode (typical)
-
100 V, 100 kHz, 20 A shunt < 15 mA
100 V, 100 kHz, 1 A shunt < 500 μA
100 V, 100 kHz, external shunt < 40 mV
- Measurement accuracy - frequency
-
- Frequency (10 Hz to 20 kHz)
- 0.1% of Reading, with the peak of the signal extending 10% above and 10% below the DC level
- Frequency (20 kHz to 1 MHz)
- 0.1% of Reading, with the peak of the signal extending 25% above and 25% below the DC level
- Measurement accuracy - power
-
- Watts accuracy 1
-
± 0.075% of Reading ± 0.075% of Range (PF=1)
- VA accuracy 1
- ± 0.075% of Reading ± 0.075% of Range
- VAR accuracy (typical)
-
- PF Accuracy
-
Cos θ -cos [ θ± ( Vh1 ph.err± Ah1 ph.err)] ± 0.002
- Measurement accuracy - harmonic magnitude and phase (typical) 1
-
- Voltage harmonics magnitude (10 Hz to 1 MHz)
- ± 0.02% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± 0.05 V
- Voltage harmonics phase
- ± 0.1 ± [ 0.01 * Vrange / Vreading )] ± (0.2 / Vrange) ± ( 0.005 *F )
- Current harmonics magnitude (10 Hz to 1 MHz)
- ± 0.2% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± (50 µV /Zext)
- Current harmonics phase
- ± 0.1 ± [0.01 * Arange / Areading)] ± (0.002 / Arange * Zext)) ± (0.005 *F)
1F is the frequency measured in kHz. In the case of harmonics, F is the harmonic frequency.
Zext is the shunt impedance and must be less than or equal to 10 ohms.
Specifications are valid only when applicable voltage and current inputs are >10% of range. The exception is harmonics where the specification is valid when the magnitude of the harmonic is >2% of range.
Measurement conditions during calibration: Instrument default settings unless otherwise stated, Sine waves applied to V and I inputs, 30 minute warm-up, Temperature 23 °C ±5 °C.
Physical characteristics
| Dimensions |
mm |
in |
| Height |
102 |
4.0 |
| Width |
223 |
8.7 |
| Depth |
285 |
11.2 |
| Weight |
Kg |
lb |
| Net (without lead set) |
3.2 |
7.0 |
| Temperature |
C |
F |
| Operating |
0 °C to +40 °C |
+32 °F to +102 °F |
| Nonoperating |
-20 °C to +60 °C |
-4 °F to +140 °F |
