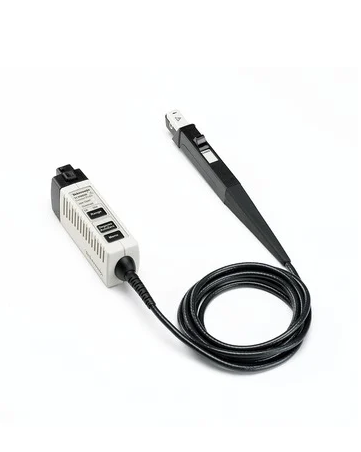

TEKTRONIX TCP0030A + TCP0030A R5 AC/DC Current Probe (30 Amp DC, DC ~ 120 MHz)

Bandwidth: DC to ≥120 MHz

Rise time: ≤2.92 ns

Maximum DC current: 30 A

Maximum RMS current: 30 A

Maximum peak pulse current: 50 A

Maximum bare wire voltage: 150 V CAT II, (insulated wire 300 V CAT II)

Sensitivity: 1 mA (on oscilloscopes that support 1 mV/div setting)

DC accuracy: ±3% warranted

Accuracy, typical

DC: ±1% of reading

DC to 60 Hz, ≤5 A: ±1%

60 Hz – 5 kHz, ≤5 A: ±1.5%

DC – 5 kHz, >5 A: ±1.5%

Maximum Amp-Second product: 500 A*µs (in 30 A range)

Insertion impedance

1 mΩ at 10 kHz

3.5 mΩ at 100 kHz

0.08 Ω at 1 MHz

0.15 Ω at 10 MHz

0.7 Ω at 100 MHz

0.85 Ω at 120 MHz

Signal delay: 14.5 ns

Current ranges: 5 A and 30 A

Power requirements: TCP0030A is powered directly by oscilloscopes with the TekVPI™ interface.

Include: TCP0030A R5
