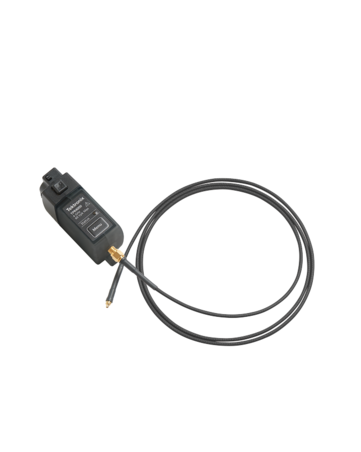

TEKTRONIX TPR1000 + TPR1000 R5 Active Power Rail Probes (1 GHz)
Manufacturer: TEKTRONIX Model: TPR1000 + TPR1000 R5 - Contact
Bandwidth: 1 GHz
Offset voltage range: ±60 V
Dynamic range: ±1 V
Input resistance
50 kΩ DC
50 Ω AC
Input coupling: DC, LF reject
Accuracy: 1 mV
System noise (typical)
<165 μVP-P (with 20 MHz bandwidth limit)
<1.3 mVP-P (at full bandwidth of oscilloscope)
Using 6 Series MSO oscilloscopes. With grounded input and maximum sensitivity set to 1.3 mV/Div.
Attenuation: 1.25x
Frequency response optimized for <1 Ω source impedance.
Connectivity and accessories: New browser, solder-in and snap-on
Include: TPR1000 R5
