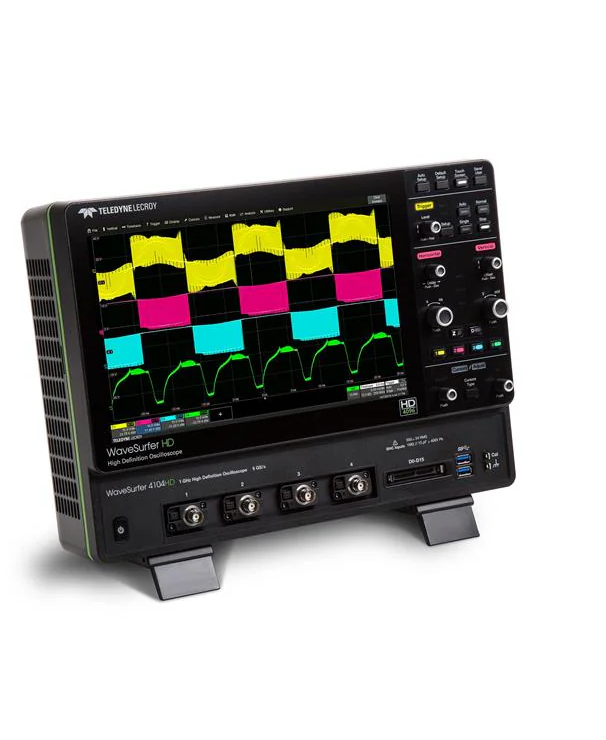

Vertical - Analog Channels
Analog Bandwidth @ 50 Ω (-3 dB): 1 GHz
Rise Time (10–90%): 450 ps
Input Channels: 4
Effective Number of Bits (ENOB): 8.3
Vertical Noise Floor (rms, 50 Ω):
1 mV/div: 125 μV
2 mV/div: 125 μV
5 mV/div: 125 μV
10 mV/div: 130 μV
20 mV/div: 160 μV
50 mV/div: 280 μV
100 mV/div: 465 μV
200 mV/div: 1.65 mV
500 mV/div: 2.75 mV
1 V/div: 4.70 mV
Sensitivity 50 Ω: 1 mV–1 V/div, fully variable; 1 MΩ: 1 mV–10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy): ±0.5% FS, offset at 0 V
Horizontal - Analog Channels
Acquisition Modes: Real-time, Roll, Average, Sequence (Segmented Memory up to 1000 segments with 1 μs min. intersegment time)
Timebases: Internal timebase common to 4 input channels
Time/Division Range: 500 ps/div to 100 s/div
Clock Accuracy: ±2.5 ppm + 1.0 ppm/year from calibration
Acquisition - Analog Channels
Sample Rate (Single-Shot): 2.5 GS/s on 4 Ch, 5 GS/s on 2 Ch
Standard Memory (4 Ch / 2 Ch): 12.5 Mpts / 25 Mpts
Averaging: Summed averaging to 1024 sweeps
Triggering System
Modes: Normal, Auto, Single, and Stop
Sources: Any input channel, Ext, Ext/5, or Line; slope and level unique to each source (except Line trigger)
Coupling: DC, AC, HFRej, LFRej
Hold-off: From 10 ns up to 20 s or from 1 to 100,000,000 events
Pre-trigger Delay: 0 to 100% of full scale
Post-trigger Delay: 0 to 10,000 divisions
Internal Trigger Level Range: ±4.1 div from center (typical)
External Trigger Level Range: Ext (±0.610 mV); Ext/5 (±3.05 V)
Maximum Trigger Rate: 175,000 waveforms/second
Trigger Sensitivity with Edge Trigger (Ch 1–4): 0.9 division @ 10 MHz, 1.0 division @ 1 GHz
Power Requirements
Voltage: 100 to 240 VAC ±10% @ 50 to 60 Hz ±10%; 100 to 120 VAC ±10% @ 400 Hz ±5%; automatic AC voltage selection
Nominal Power Consumption: 90 W / 90 VA
Max Power Consumption: 150 W / 150 VA
