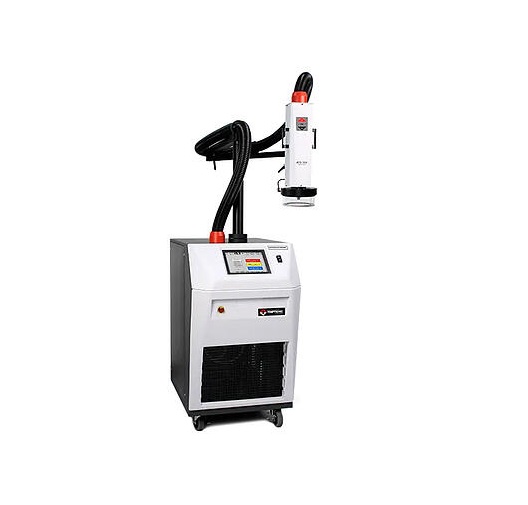

Temptronic ATS-710E-M Thermostream® (-80° ~ +225°C)

Description

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)

Performance

Temperature Range - No LN2 or LCO2 Required:

       -75 to +225°C (50Hz)

        -80 to +225°C (60Hz

Transition Rate:

      -55 to +125°C, approx. 10 seconds

      125 to -55°C, approx. 10 seconds

System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s) Continuous

Temperature Control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Internal diode, thermocouples (T & K), RTD (100 Ohm platinum)

Facility Requirements

Power: 200 - 250 VAC (230V nominal), 50/60Hz 30 amp, 1phase

Compressed Air:

       Filtered to 5 micron particulate contamination.

       Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.

       Dewpoint: <10°C @ 6.2 BAR (90PSI)

Air Supply Pressure: 6.2 to 7.6 BAR (90 to 110 PSIG)

Total Air Flow Rate Required: 7.1 to 14.2 l/s (15-30 scfm), 11.8 l/s (25 scfm) nominal

Air Supply Temperature: +20° to +25°C; +22°C nominal

Operating Environment: +20° to +28°C; +23°C nominal

Humidity: 0 to 60%; 45% nominal

Noise Level: <65 dBA

Service & Safety

Refrigerants: HCFC and CFC-free, non-toxic, non-flammable

Serviceability: Auto-diagnostics and field replaceable modules

Over Temperature Protection: Settable high and low air temperature limits

(factory set at +230°C)
