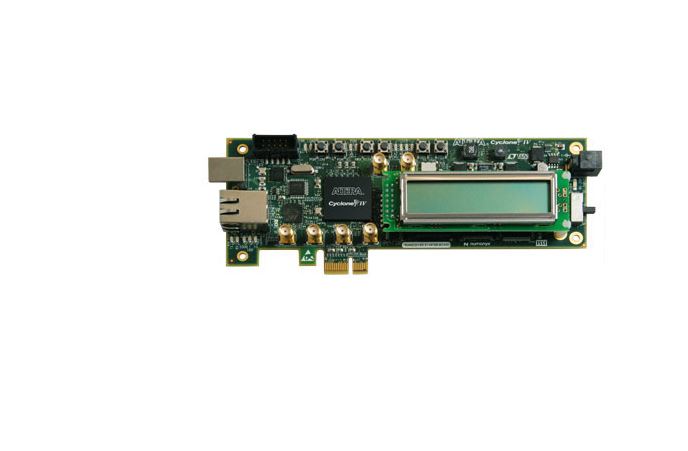

Terasic Altera Cyclone IV GX Transceiver Starter Kit

Name: Terasic Altera Cyclone IV GX Transceiver Starter Kit
Brand: Terasic

ManufacturerTerasic(View more products from this manufacturer)

ModelCyclone IV GX Transceiver

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Featured device
    Cyclone IV GX EP4CGX15BF14C8N FPGA
Configuration status and set-up elements
    MAX® II CPLD EPM2210 System Controller enabling passive serial (PS) configuration from flash
    Embedded USB-Blaster™ for using the Quartus II Programmer
    JTAG header for external USB-Blaster
    Altera serial configuration device
Clocks
    FPGA clock sources: 50 MHz, 125 MHz, and SMA clock input
    Other on-board oscillators: 6 MHz, 24 MHz, and 25 MHz
General user input/output
    LEDs
    Two-line character LCD display
    Push-buttons
Memory devices
    16 MB of flash memory
    2 MB of synchronous SRAM
Component and interfaces
    PCIe edge connector
    10/100/1000BASE-T Ethernet PHY with RJ-45 connector or one transceiver to SMA connectors (requires a minor board modification)
    On-board power measurement circuitry
Power
    Laptop DC input
    PCIe edge connector
    Power management solution from Linear Technology
        Power regulators: LT3027 and LT3023
        Step-down switching regulator: LT3510
        ADC: LTC2418
Other features
    PCIe low-profile (6.6" x 2.713") board form factor
    Restriction of hazardeous substances (RoHS) compliance

Catalog

Altera's Cyclone^® IV GX Transceiver Starter Kit provides a low-cost platform for developing transceiver I/O-based FPGA designs. This kit includes the complete hardware and software for you to:

Develop your FPGA design for cost-sensitive applications
Measure the FPGA's low power consumption
Test signal quality of the FPGA transceiver I/O pins (up to 2.5 Gbps)
Develop and test PCI Express^® (PCIe^® ) 1.0 endpoint x1 lane designs (~250 MBps transfer rate)
